CNC Router-Non ATC


1 Heavy-duty bed, high-power spindle ,powerful processing capacity.
2 Servo drive system,rack and rail transmission, high precision and high stability.
3 DSP handle control system,independent control cabinet, easy to operate and maintain.
4 Aluminum table and vacuum table are available, suitable for processing a variety of materia

Request A Quote


Product Description

Trying to figure out which commercial CNC router is right for you? Contact our team to learn more about how our tools can craft anything you have in mind.

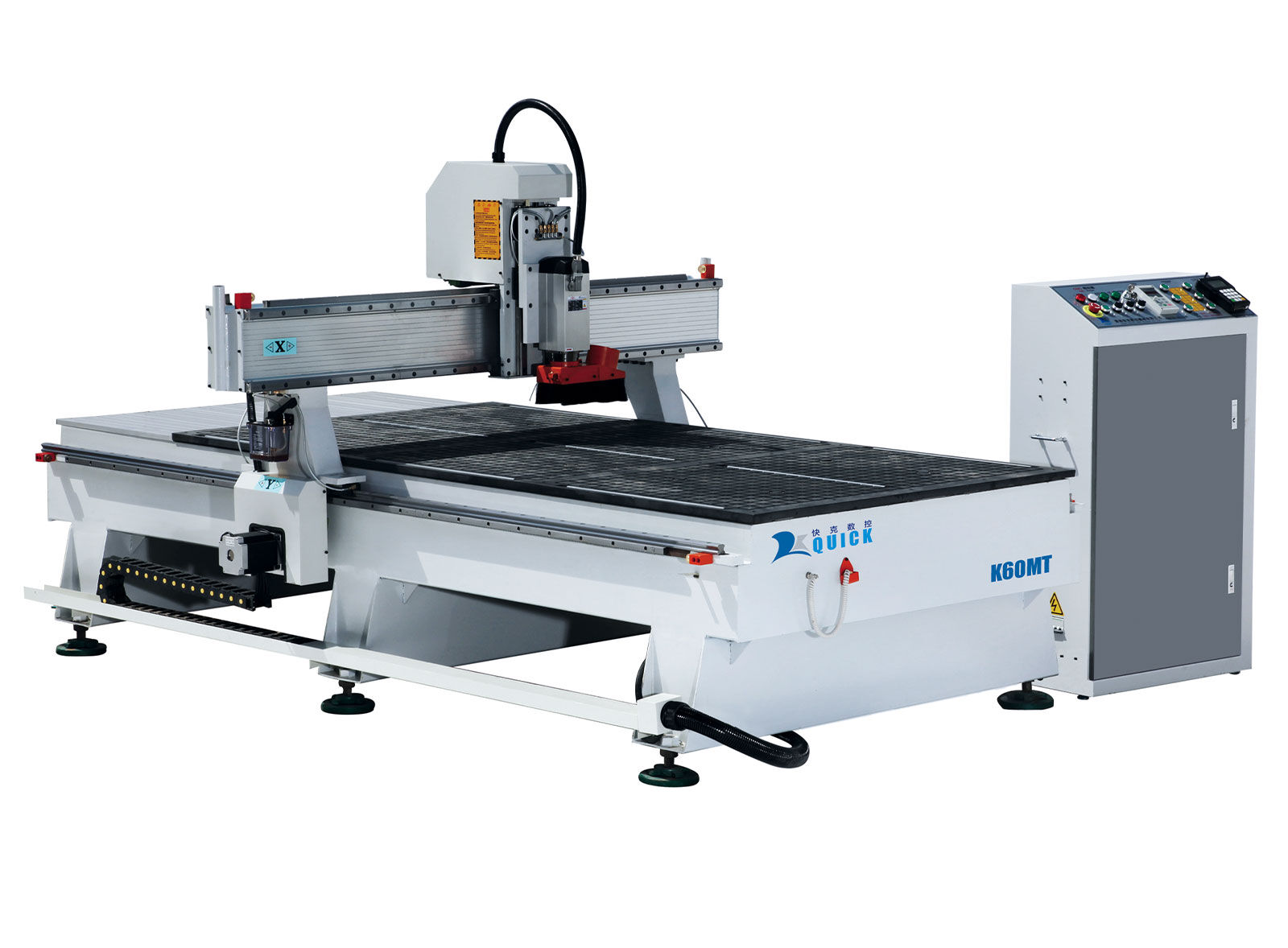

K60MT is a heavy-duty cnc machine for solid wood processing and large workloads. Its bed is specially designed, and adopts a high-power spindle and servo motor, which gives it powerful processing capabilities.

The working size can be designed to 1300x2500 ,1530/2030/2040 is also an option.

The 4th axis and the auto tool changers is also available .

Can add sink and all-aluminum countertop, upgrade K60MT to aluminum making machine.

Today, it is a professional device in the wood working and advertising field .

Send Inquiry



ModelK60MT- 1325
X-Y-Z axis working area 1300 x 2550 x 200mm
X-Y movementRack and pinion, gear drive
Z movementBall screw drive
GuideLinear 20 square
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle6kw, air cooling
Inverter power11kw
Drive motorsStepper Motor
Working voltageAC380V/50-60Hz, 3-phase
ControlsDSP A11
ModelK60MT- 1325
X-Y-Z axis working area 1300 x 2550 x 200mm
X-Y movementRack and pinion, gear drive/Taiwan
Z movementBall screw drive/TBI
GuideLinear 20 square/Taiwan
Max. speed35,000mm/min
Equipment includeda.Auto cut adjusting device  b.Oil lubrication system c.Vacuum  table
Equipment optionala.HSD Spindle   b.servo drive motors c.other control system  d.dust collectore.rotary axis

Accessories and Advantage

Hand controlled system, DSP A11

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto A11 controller is a powerful, lightweight and easy to use controller .

6KW air cooling spindle

The router spindle is famous Chinese brand HQD,very high precision and air cooled. The built-in fan is conducive to better heat dissipation of the spindle. The power is 6kw ,And their is dust hood fits onto the router spindle ,enough to meet most of the processing needs of various industries.

Transmission of machine

The X and Y axis are driven by rack and 30mm guide rails, and the Z axis is a ball screw, both of which are of world famous brands.This transmission mode is matched with the heavy bed, which improves the processing capacity and efficiency of the machine.

Servo motor and driver

The machine adopts the famous Japanese Yaskawa servo motor with a resolution of 24bits, which is one of the best motors on the market. Compared with stepper motors, closed-loop servo motors have the characteristics of high accuracy, fast response speed and high load capacity.

A cost-effective cnc router machine K45MT (3).jpg

Send Inquiry


Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
