The loading unit with suction cups allows the panel to be automatically loaded and positioned on the work table.Various solutions are available for cleaning the panel and the area around the machine, thus saving time for the operator.
The Gantry structure with dual motors is designed to increase precision and reliability standards for the execution of all nesting operations

1)Most of the spare parts are imported :such as Italy HSD spindle,Taiwan syntec control system, Japan Yaskawa servo motor,Taiwan original guide rail and rack .
2)The 2 spindles with 9V boring head makes the machine more efficiency ,which can change very fast .
3)The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight quadrate rails.
4)Adopts Yaskawa servo motor made in Japan, which is very powerful and with little noise .It can work continue without maintaining.

Heavy-duty bed, high-power spindles ,multiple functions.
Four independent inverters control four spindles, which can be switched quickly
Syntec control system,independent control cabinet, easy to operate and maintain.
Powerful central dust collection system to achieve dust-free

1) Most of the spare parts are imported :such as 9.6kw Italy HSD spindle, Taiwan syntec 6MB system, Japan Yaskawa servo motor,Taiwan original guide rail and rack .
2)The newly 10 pcs carousel tool magazine makes the machine more efficiency.The tools system have a independent servo motor and drive ,which can change tools very fast.
3)The auto loading&unloading is to get more productivity out of the CNC without requiring more people,all the materials handled automatically,the efficiency has been greatly improved.
4)Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.

A hydraulic lifting table (load 3,000 kg) automatically lifts the panels to the level of label printing, forwards the panel and automatically aligns it at the correct position. At the loading station the workpiece is picked up by vacuum suction cups and transported safely and smoothly to the working table. After processing, the nest is gently conveyed out of the machine onto an outfeed conveyor belt.

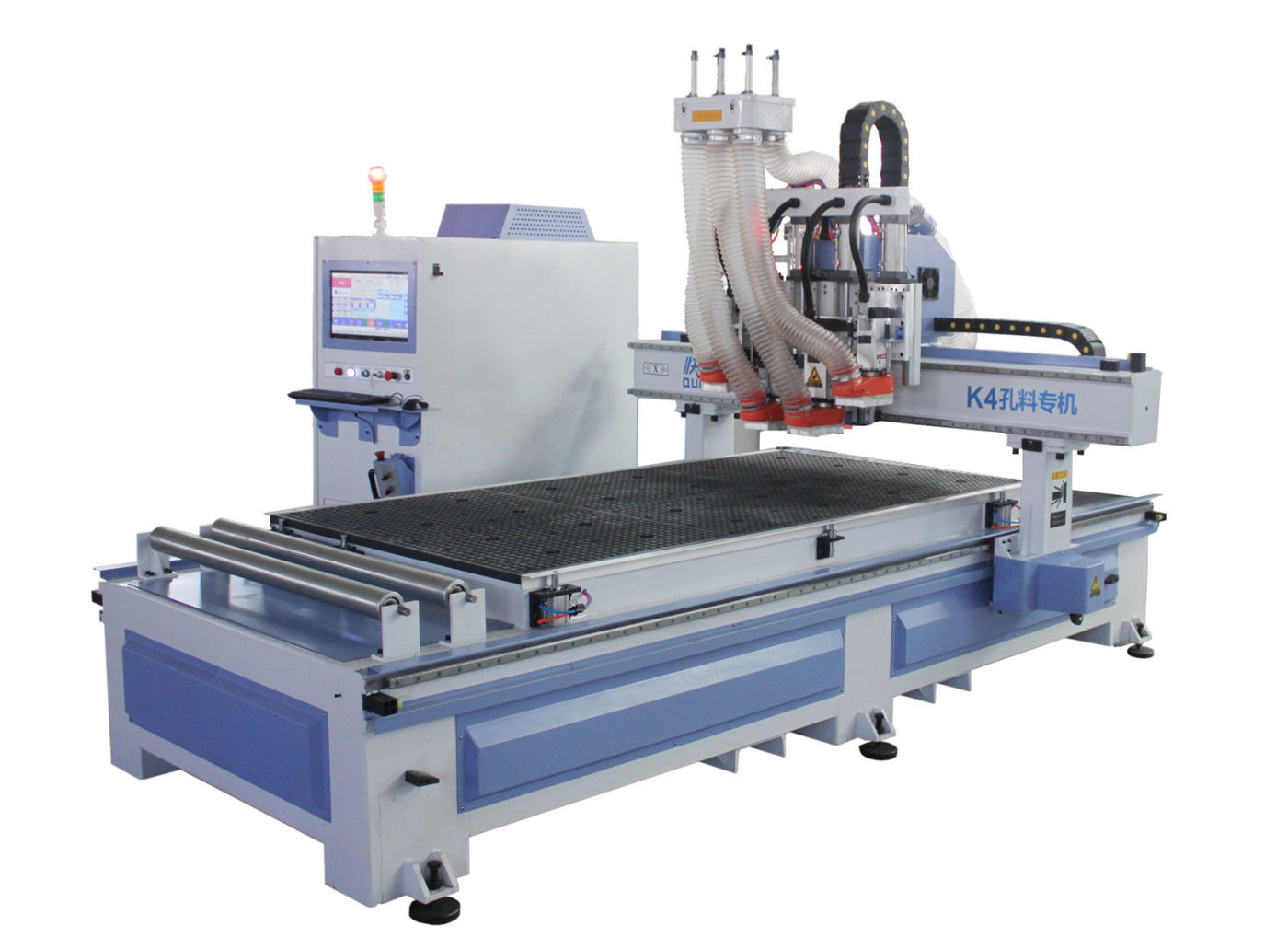

1.The loading unloading system save labor and increase work efficiency.
2.4 spindles changes alternatively makes fastest working speed for complicated work.
3. PC based control system ,it makes it easier to operate and daily maintenance.
4. Special dust cleaning system and operate dust remove double time.

Our AE2800-1F side drilling machine is specially developed for side hole drilling and slotting.Body adopts an overall thick-walled all-steel structure design,high strength and smooth operation. After annealed at high temperature,long-term high-speed operation deformed free and maintains high accuracy.Then to the pentahedron machining center to ensure accuracy.

1 The upper beam double-drilling bank structure is adopted, and the double-drilling bank is punched at the same time, which is more efficient.
2 A sawdust conveyor belt is installed under the drill bag, which can transport the unsucked sawdust out through the conveyor belt, and a 3-second blowing pipe is installed on the top of the table.
3 Use the most reasonable drilling layout. When two horizontal drills are processed at the same time, the minimum hole spacing is 160mm.
4 The front desk adopts a lifting table structure, which solves the problem of countertop avoidance when customers are drilling horizontal holes.

Quick CNC New product Laser edge banding machine. It has perfect edge banding effect. .It is more beautiful, especially for transparent panels such as white and other light-colored door panels such as acrylic, and the hardness and color of the functional layer of laser edge banding are consistent with the surface layer of the edge band, which can achieve seamless edge banding. The product quality is more stable, heat-resistant, moisture-resistant, mildew-proof, high added value, healthy and environmentally friendly, prolonging the service life of the product.

1.Guided multi functional control interface, pneumatic control, no manual tool adjustment, feed speed of the fastest 30m / min, easy to use, no special post skills training.
2.The equipment is equipped with a pre-milling device, which can effectively repair the roughness of the incision when cutting, the cut is more flat, and the edge is naturally pasted more, making the glue water line more invisible.
3.High speed tracking this equipment adopts the high-end configuration of four knife tracking, even when the equipment is running at high speed, it can still achieve accurate tracking (chamfer / fillet) effect stably.

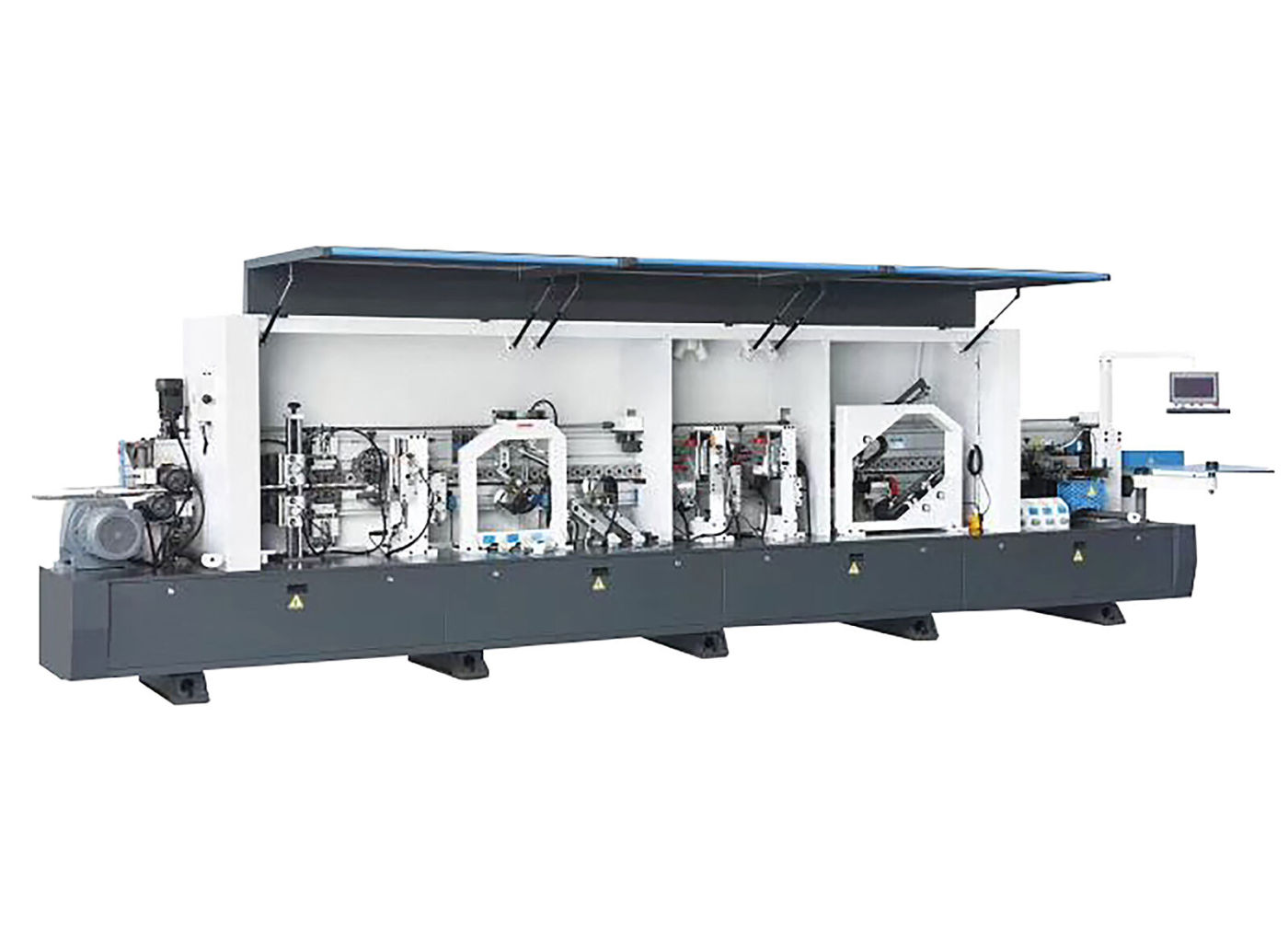

1.Edge banding machine FK61 has the function of separation and solves the problem of hot melt glue polluting the board surface after gluing.
2.Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
3.High speed tracking this equipment adopts the high-end configuration of two knife tracking, even when the equipment is running at high speed, it can still achieve accurate tracking (chamfer / fillet) effect stably.

Function: Pre-milling,Gluing unit ,End trimer ,Fine trimer ,Edge scraper,Corner Rounding,Buffing unit

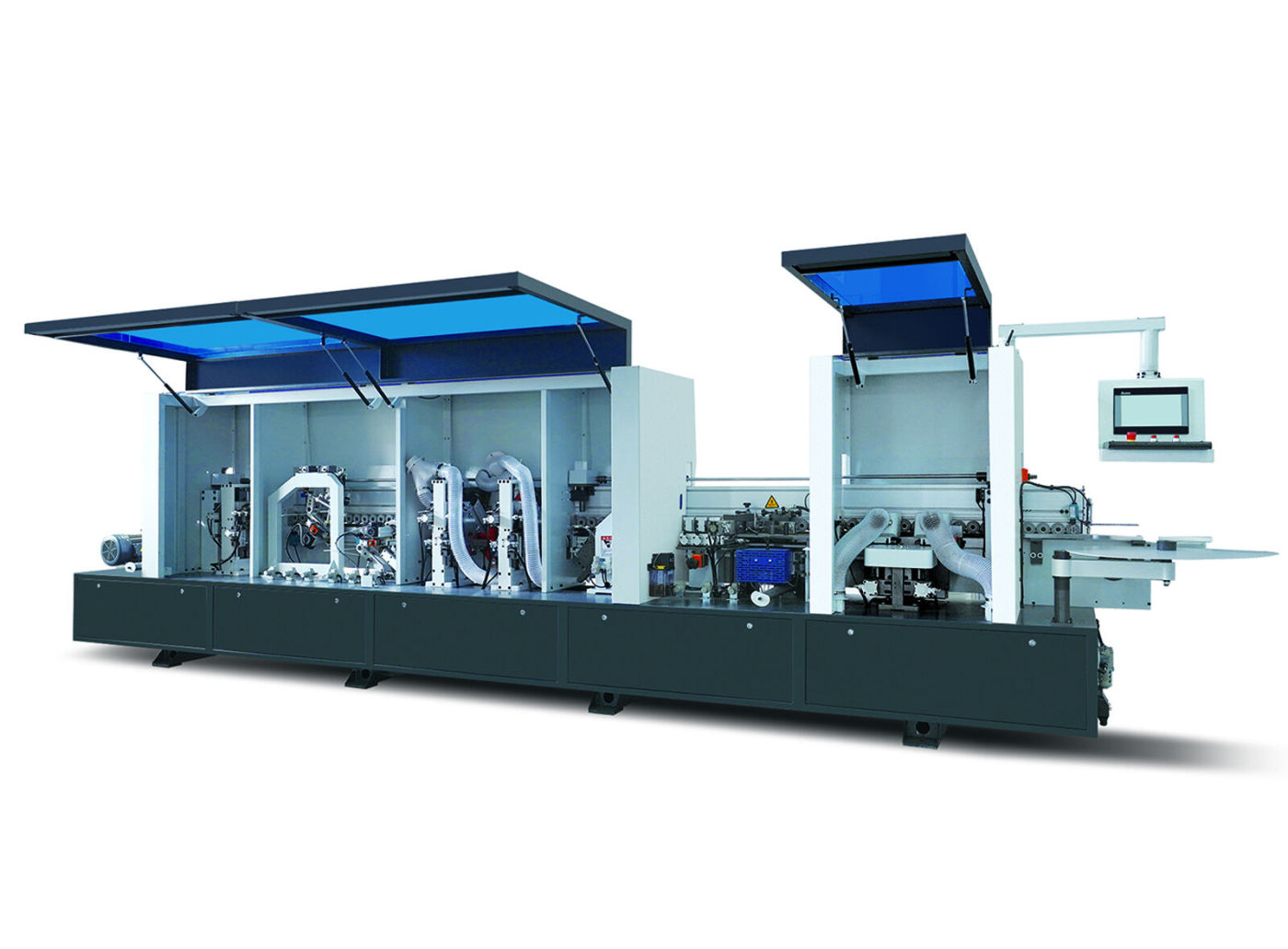

1.The edge bander FK53 is the flagship model of our edge bander line,with the addition of Pre Milling and Corner Rounding, this machine has all the features from QUICK CNC Edge bander.
2.Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
3. Module design concept, from the processing process to the selection of single parts, the maximum use of international common parts assembly, reduce the high manufacturing costs caused by special devices, and reduce the procurement costs of later accessories.

Function: Gluing unit ,End trimer ,Fine trimer ,Edge scraper,Corner Rounding,Buffing unit
1. Guided multi-function control interface, pneumatic control, no manual tool adjustment, and the fastest feed speed is 32m/min. It is very easy to use and does not require special job skills training.
2. With tracking function, the 4 corners of the side bands of the plate are milled into R arcs to increase the aesthetics of the plate corners
3. Digital temperature control and visual prompts are realized to ensure the best gluing effect, reduce waste and improve efficiency.

Function: Gluning unit ,End trimer ,Fine trimer ,Edge scraper,Buffing unit

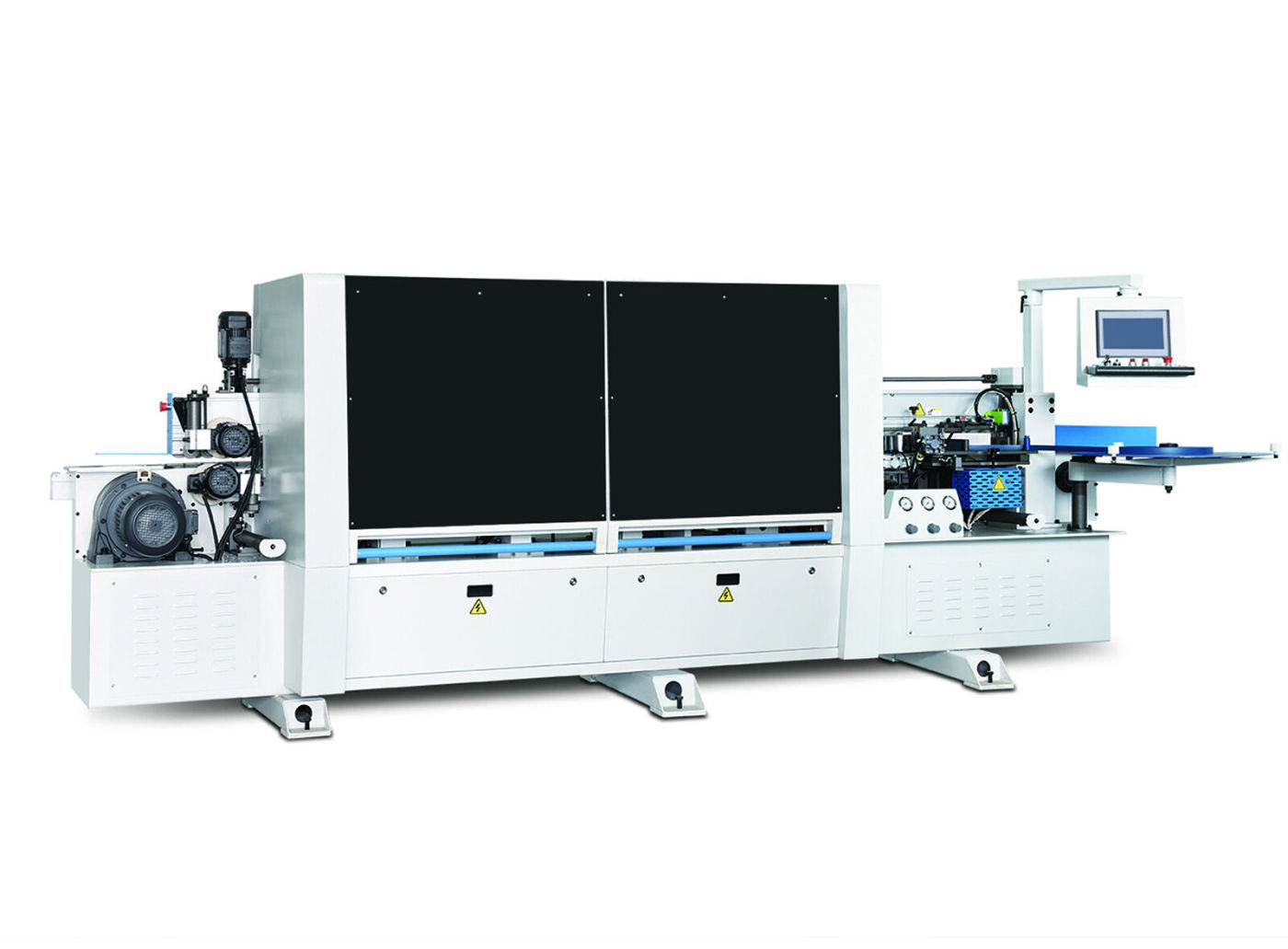

1.FK50 is designed for industrial use and specifically for jointing, edge banding and fine-finishing of edgings.
2.All processing schedules can be preset and stored according to the processing materials and process requirements.
3.Easy one-person operation through automation of essential functions.
