CNC Router-Non ATC

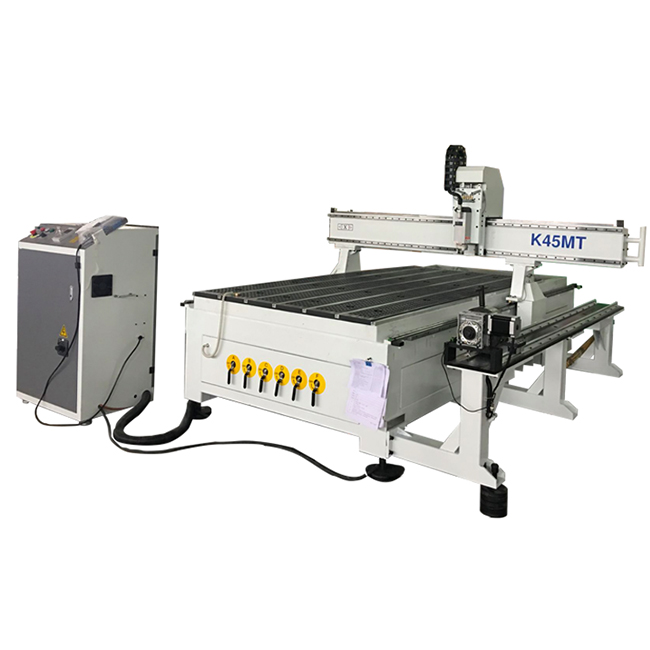

 Heavy duty 4th rotary axis 1325 cnc router

The K45MT-1325 cnc router with rotary axis, features a heavy, all-steel tube frame that ensures durability. K45MT is one of our most popular machines, its working size is 1300x2500mm, this size can meet most of the board processing needs. we also offer it in 4 by 4 ,5 by 10 5 by 12 and other sizes upon request.
With the this CNC Router, you can cut a variety of materials, including plastic, wood, foam, and composite materials.
Main specs :
4.5kw air cooling spindle
Stepper motor
Vacuum table with powerful pump
DSP A18 Handheld controller
Learn more about the K45MT CNC Router and if it’s the right fit for your needs when you email our sales team at sales@quick-cnc.com

Request A Quote

INQUIRY

Product Description

This design is heavy duty cnc router, with wider processing range,like solid wood, aluimum etc. The K45mt-1325 cnc router with rotary machine is easy to operate, and the engraved products have high precision and quality. K45MT is one of our most popular machines, its working size is 1300x2500mm, this size can meet most of the board processing needs. K45MT has the most basic and mainstream configuration, simple operation, can process wood, plastic, acrylic, soft metal and other materials. By using a K45MT series CNC router, you’ll find plenty of room for creativity — anything you can draw, it can cut. These machines cut well and have tremendous edge finishes because they use the same motion control as the bigger machines. They also come with hand-held control DSP systems that make for easy use.

This mode can make 1300X1300mm or 1300X2500mm size .Also can custom to 2000x3000 or 2000x4000mm.The 4th axis is also option .






Send Inquiry

Video

Parameter

ModelK45MT
X-Y-Z axis working area1300X2500X200mm
Guidey Linear ¢20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle power4.5KW air cooling
Spindle speed18,000rpm
Inverter power7.5kw
Drive motorsStepper motor ,leadshine driver
Tablevacuum table with 7.5kw pump
Software freeType 3
controllerDSP A18
Option6KW HSD spindle ,dust collector ,4th axis ,vacuum table1500X3000X200mm2000X3000X200mm2000X4000X200mm

Accessories and Advantage

Air cooling spindle 4.5kw

Imported bearings with good quality, long working life
Application: Milling,Engraving,Drilling. High speed, low noise. Higher precision.


Heavy duty structure

The CNC machines featuring one-pieces steel frames. They are much more stable than other CNC machines you can find elsewhere at similar prices.

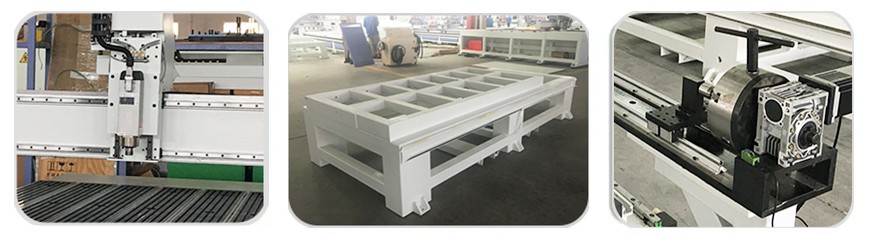

Rotary axis

Rotary axis does not occupy the working area of the machine. It is easy to be disassembled and cleaned. It is widely used for processing cylinder materials, such as chair legs,stairs and so on.

k45 rotary02.png


Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
