CNC Router-Non ATC

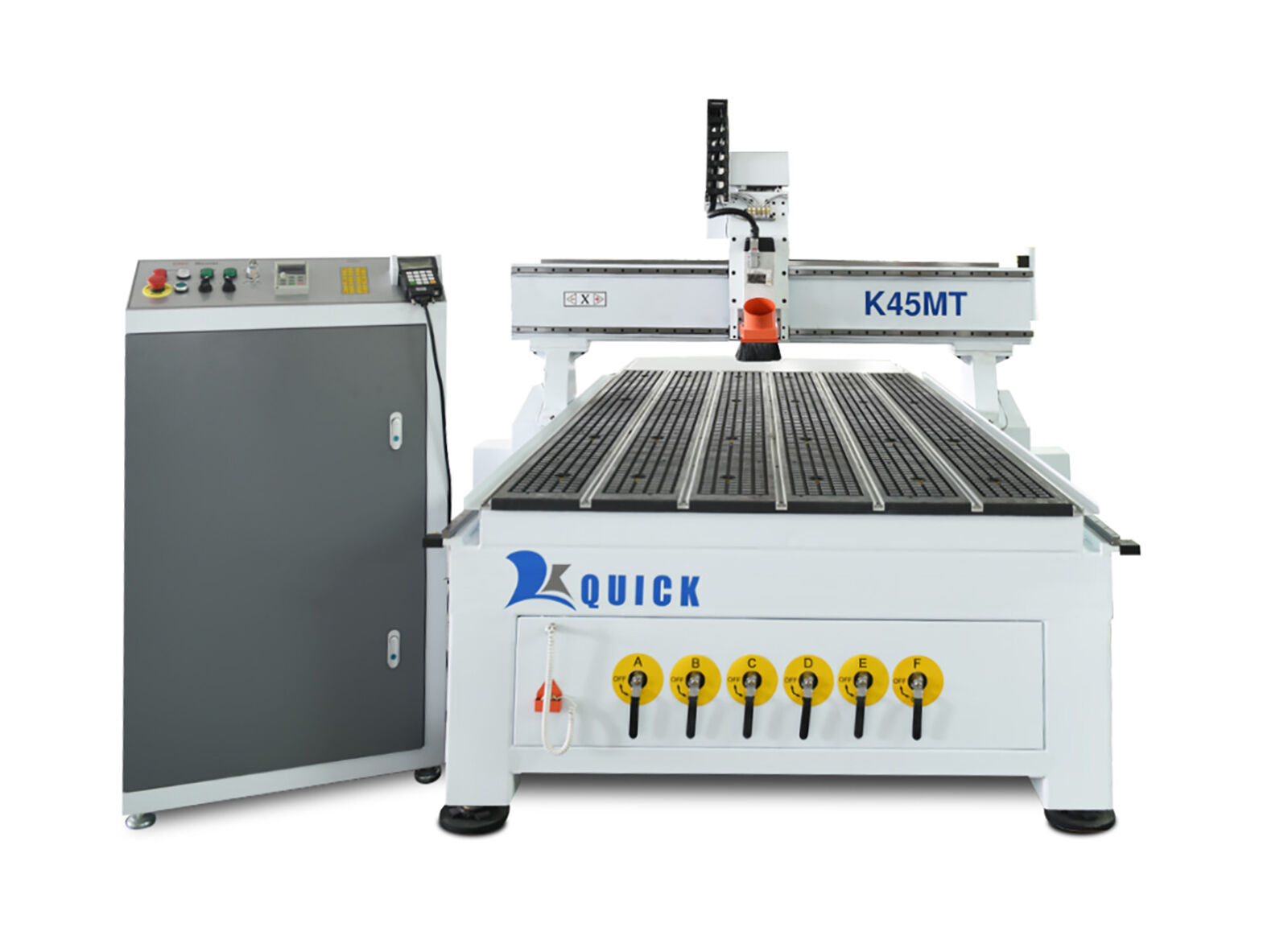

 Heavy duty 1325 cnc router machine K45MT

The K45MT, features a heavy, all-steel tube frame that ensures durability.
With the this CNC Router, you can cut a variety of materials, including plastic, wood, foam, and composite materials.
Main specs :
6kw air cooling spindle
Stepper motor
Vacuum table with powerful pump
Handheld controller
Learn more about the K45MT CNC Router and if it’s the right fit for your needs when you email our sales team at sales@quick-cnc.com

Request A Quote

INQUIRY

Product Description

This design is heavy duty cnc router , with wider processing range,like solid wood ,aluimum etc .By using a K45MT series CNC router, you’ll find plenty of room for creativity — anything you can draw, it can cut. These machines cut well and have tremendous edge finishes because they use the same motion control as the bigger machines. They also come with hand-held control DSP systems that make for easy use.

This mode can make 1300X1300mm or 1300X2500mm size .Also can custom to 2000x3000 or 2000x4000mm.The 4th axis is also option .


Heavy duty 1325 cnc router (3).jpg



Send Inquiry

Video

Parameter

ModelK45MT
X-Y-Z axis working area1300X2500X200mm
Guidey Linear ¢20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle power6KW air cooling
Spindle speed18,000rpm
Inverter power7.5kw
Drive motorsStepper motor ,leadshine driver
Tablevacuum table with 7.5kw pump
Software freeType 3
controllerDSP A11
Option

6KW HSD spindle ,dust collector ,

4th axis ,

vacuum table1500X3000X200mm

2000X3000X200mm

2000X4000X200mm

Accessories and Advantage

Hand controlled system, DSP A11

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto A11 controller is a powerful, lightweight and easy to use controller .

Stepper motors

Good mechanical performance and powerful driver, based on NEMA34 motor and driver, it can achieve a moving speed of 35,000 mm per minute, with an accuracy of 0.01 mm, and a belt reducer with a torque transmission coefficient of 1: 3.

Linear rails and slice bearings

We use top quality square linear rails with slice bearings on K45MT,which is used to support and guide moving parts, reciprocate linearly in a given direction. Precision is less than 0.02mm, high stability, long service life.

A cost-effective cnc router machine K45MT (3).jpg

Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
