Heavy Duty Automatic Edge Banding Machine FK61
2.Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
3.High speed tracking this equipment adopts the high-end configuration of two knife tracking, even when the equipment is running at high speed, it can still achieve accurate tracking (chamfer / fillet) effect stably.
Request A Quote
Product Description
Heavy Duty Automatic Edge Banding Machine FK61,this equipment has rich functions of high quality, can provide high quality edge sealing effect.The maximum feed speed of this machine can reach 23m/min, and the high efficiency production is further pushed to the maximum. Even in the face of high-quality large-scale orders, we can still face it calmly, and the delivery time is fast.
Parameter
Accessories and Advantage

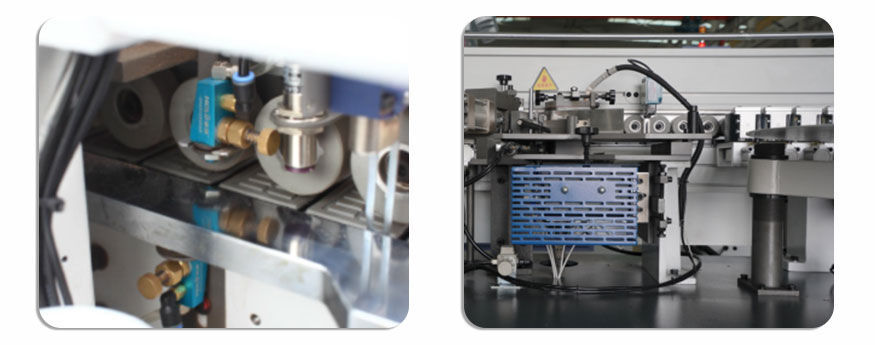

Pre-milling
After milling by milling mechanism, all kinds of defects on the machined surface can be removed, and the edge sealing can reach the best state.

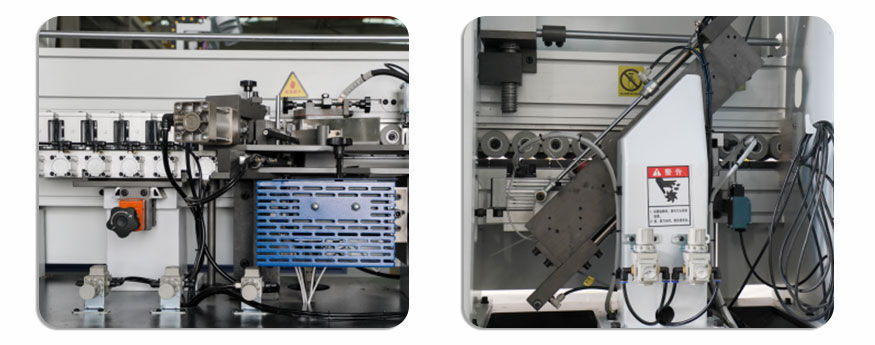

Gluing system
Reasonable control of glue quantity, good thermal conductivity, stable operation, uniform coating, firmer adhesion and more perfect edge sealing effect.
Four pressure wheel pressing
Strong pressing force, edge banding is more suitable, scraping off the excess hot melt glue, making the glue line smaller and the edge banding effect more perfect.
Fast ending cutting
Fast cutting the front and rear edge banding, two saw blades are matched in front and back to achieve high precision and high efficiency.
The automatic oil filling system of the end aligning guide rail extends the service life of the equipment.

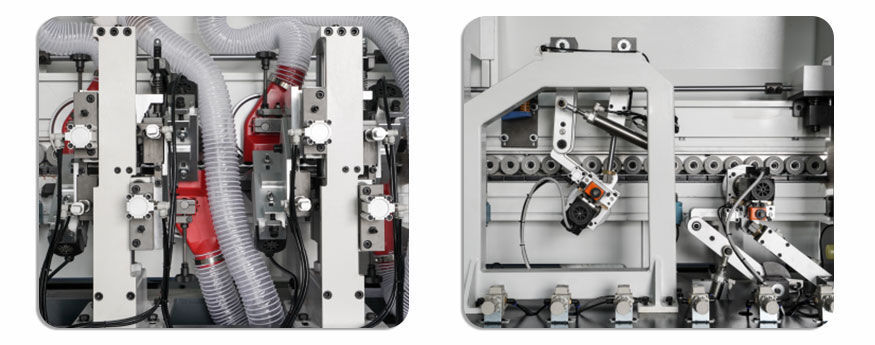

Fine trimming
The upper and lower sides of the edge banding are protruded from the upper and lower planes of the board, and the redundant edge banding is trimmed into an R-angle shape, so that the upper and lower edges of the edge banding are flush and smooth with the upper and lower surfaces of the board.
Double corner trimming
The edge fillet (chamfer) of plate is processed to make the four corners of plate smooth and beautiful.
Scraping
Remove the marks left by trimming knife and finish R fillet, pneumatic scraping.
Buffing
Throw away the excess glue mark to make the edge banding smoother and cleaner.
Video
Related Products
KF-83KS Laser edge banding machineQuick CNC New product Laser edge banding machine. It has perfect edge banding effect. .It is more beautiful, especially for transparent panels such as white and other light-colored door panels such as acrylic, and the hardness and color of the functional layer of laser edge banding are consistent with the surface layer of the edge band, which can achieve seamless edge banding. The product quality is more stable, heat-resistant, moisture-resistant, mildew-proof, high added value, healthy and environmentally friendly, prolonging the service life of the product.
FK831.Guided multi functional control interface, pneumatic control, no manual tool adjustment, feed speed of the fastest 30m / min, easy to use, no special post skills training.
2.The equipment is equipped with a pre-milling device, which can effectively repair the roughness of the incision when cutting, the cut is more flat, and the edge is naturally pasted more, making the glue water line more invisible.
3.High speed tracking this equipment adopts the high-end configuration of four knife tracking, even when the equipment is running at high speed, it can still achieve accurate tracking (chamfer / fillet) effect stably.- FK53Function: Pre-milling,Gluing unit ,End trimer ,Fine trimer ,Edge scraper,Corner Rounding,Buffing unit
1.The edge bander FK53 is the flagship model of our edge bander line,with the addition of Pre Milling and Corner Rounding, this machine has all the features from QUICK CNC Edge bander.
2.Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
3. Module design concept, from the processing process to the selection of single parts, the maximum use of international common parts assembly, reduce the high manufacturing costs caused by special devices, and reduce the procurement costs of later accessories. - FK51Function: Gluing unit ,End trimer ,Fine trimer ,Edge scraper,Corner Rounding,Buffing unit
1. Guided multi-function control interface, pneumatic control, no manual tool adjustment, and the fastest feed speed is 32m/min. It is very easy to use and does not require special job skills training.
2. With tracking function, the 4 corners of the side bands of the plate are milled into R arcs to increase the aesthetics of the plate corners
3. Digital temperature control and visual prompts are realized to ensure the best gluing effect, reduce waste and improve efficiency.
