Six-sided drilling machine KQ-63 / KQ-62
2 A sawdust conveyor belt is installed under the drill bag, which can transport the unsucked sawdust out through the conveyor belt, and a 3-second blowing pipe is installed on the top of the table.
3 Use the most reasonable drilling layout. When two horizontal drills are processed at the same time, the minimum hole spacing is 160mm.
4 The front desk adopts a lifting table structure, which solves the problem of countertop avoidance when customers are drilling horizontal holes.
Request A Quote
Product Description

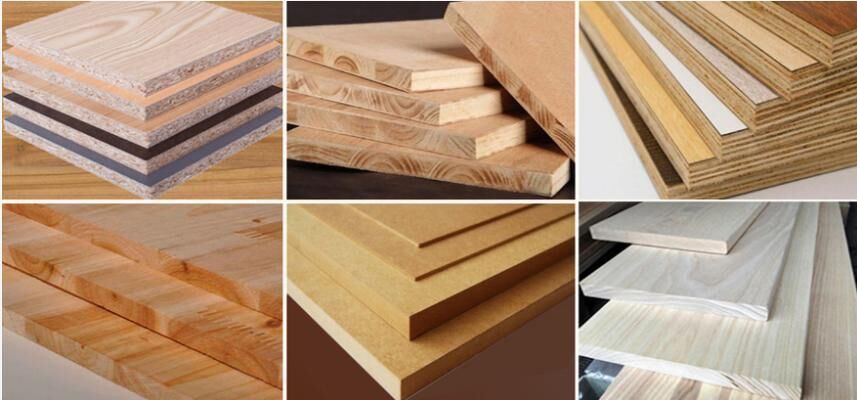

The CNC six-sided drill is mainly used in the processing applications of horizontal and vertical drilling and grooving of all kinds of man-made panels, solid wood panels and semi-solid wood panels. It is a kind of CNC processing equipment with simple operation and fast drilling processing speed. Slotting, suitable for processing all kinds of combined cabinet panel furniture.
The two Z-axis drill banks on KQ-63 can be processed at the same time or independently, which improves the processing efficiency. When a drill bank fails, you can only use the other drill bag for processing.
Features:

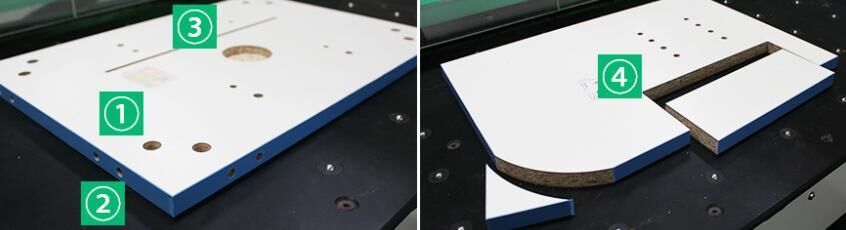

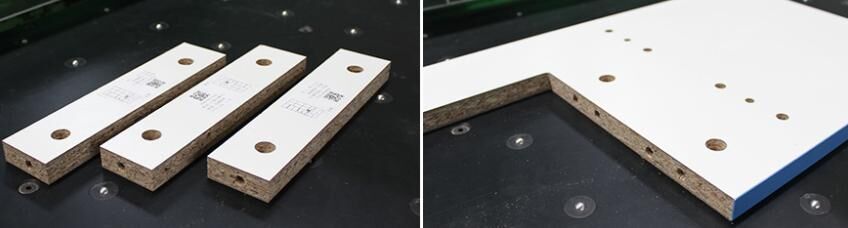

After importing the processing data in the processing process, scan the code to complete the processing. No need to turn over, no secondary processing, after processing, automatic discharging, manual sorting, high work efficiency.
Compared with PTP, it realizes the function of precise printing of small boards, and greatly reduces the occupied space, reduces the use of power, and saves electricity.
There are three ways of sidetracking press roller, vertical pressing plate and lower support plate to ensure that the plate is fixed and the drilling accuracy is guaranteed.
A variety of data formats, such as BAN, DXF, XML, MPR, BD, etc., can be docked with mainstream software in the market.
The upper and lower spindles can process symmetrical slots on the front and back at the same time.
Video
Parameter
Accessories and Advantage
Quick cnc control system
Using the Quick cnc customization system, you can implement simulation processing simulation view, you can find the problems in the processing in time to reduce losses.

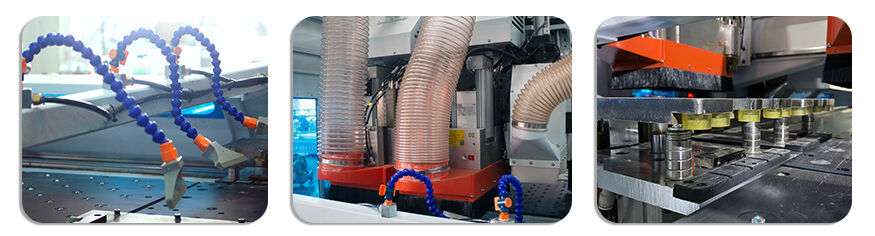

Spindle and drilling bank
Two high-efficiency 3.5kw spindles are used. The upper drilling bank adopts an L-shaped (12V4H) customized layout, and the lower drilling bank adopts a 3*3 row drilling layout, which effectively improves the efficiency of use
Heavy frame and strong transmission
The whole bed is welded with a 150x100mm rectangular tube, and the bed is annealed to eliminate stress. The guide rail comes with a steel belt, which greatly improves the dustproof performance of the guide rail. The ball screw adopts high dustproof design, good effect, high speed and quietness, and good fluency
Servo motor and driver
The machine driven by high quality Chinese servo motor. Compared with stepper motors, closed-loop servo motors have the characteristics of high accuracy, fast response speed and high load capacity.
