Edge Banding Machine

High Effciency Automatic Linear Edge Banding Machine Fk53

Function: Pre-milling,Gluing unit ,End trimer ,Fine trimer ,Edge scraper,Corner Rounding,Buffing unit
1.The edge bander FK53 is the flagship model of our edge bander line,with the addition of Pre Milling and Corner Rounding, this machine has all the features from QUICK CNC Edge bander.
2.Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
3. Module design concept, from the processing process to the selection of single parts, the maximum use of international common parts assembly, reduce the high manufacturing costs caused by special devices, and reduce the procurement costs of later accessories.

Request A Quote


Product Description

Automatic Linear Edge Banding Machine FK53,this equipment has the function of general edge sealing, and the price is more user-friendly. It is suggested that the customers should make excessive use in the start-up stage to meet the order demand of the general process requirements in the start-up stage, while the equipment cost threshold is low and it is easy to start.

Send Inquiry


Shape size6500x900x1600mm
Edge tape thickness0.4-3mm
Sheet length≥150mm
Working air pressure0.7Mpa
Conveying transmissionGPG motor
Total power15KW
Feed rate16-23m/min
Sheet thickness9-50mm
Sheet width≥60mm
Air cylinderAirTAC

Accessories and Advantage

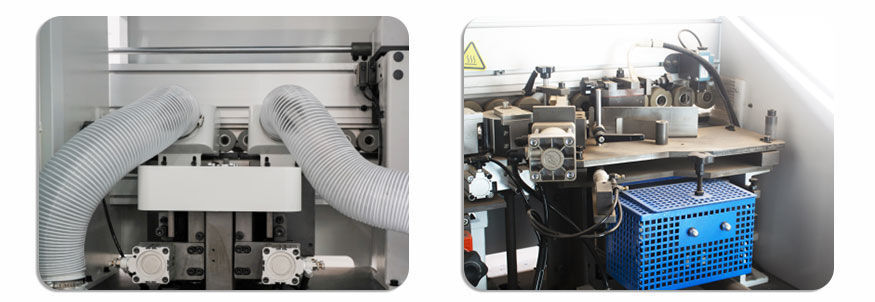

After milling by milling mechanism, all kinds of defects on the machined surface can be removed, and the edge sealing can reach the best state.

Gluing system

Reasonable control of glue quantity, good thermal conductivity, stable operation, uniform coating, firmer adhesion and more perfect edge sealing effect.

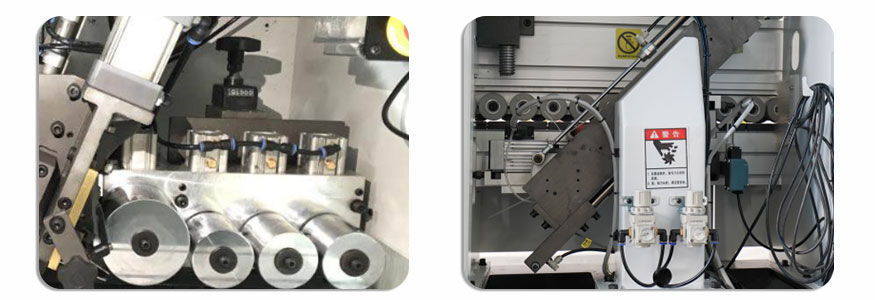

Four pressure wheel pressing

Strong pressing force, edge banding is more suitable, scraping off the excess hot melt glue, making the glue line smaller and the edge banding effect more perfect.

Fast ending cutting

Fast cutting the front and rear edge banding, two saw blades are matched in front and back to achieve high precision and high efficiency.

The automatic oil filling system of the end aligning guide rail extends the service life of the equipment.

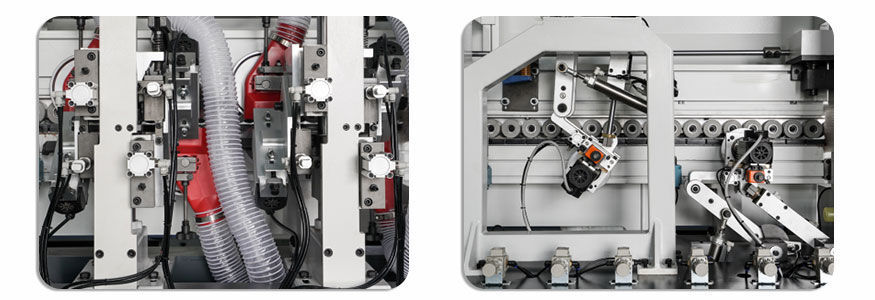

Fine trimming

The upper and lower sides of the edge banding are protruded from the upper and lower planes of the board, and the redundant edge banding is trimmed into an R-angle shape, so that the upper and lower edges of the edge banding are flush and smooth with the upper and lower surfaces of the board.

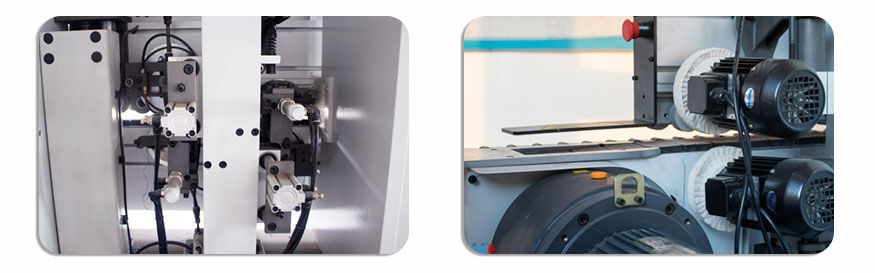

Double corner trimming

The edge fillet (chamfer) of plate is processed to make the four corners of plate smooth and beautiful.


Remove the marks left by trimming knife and finish R fillet, pneumatic scraping.


Throw away the excess glue mark to make the edge banding smoother and cleaner.
