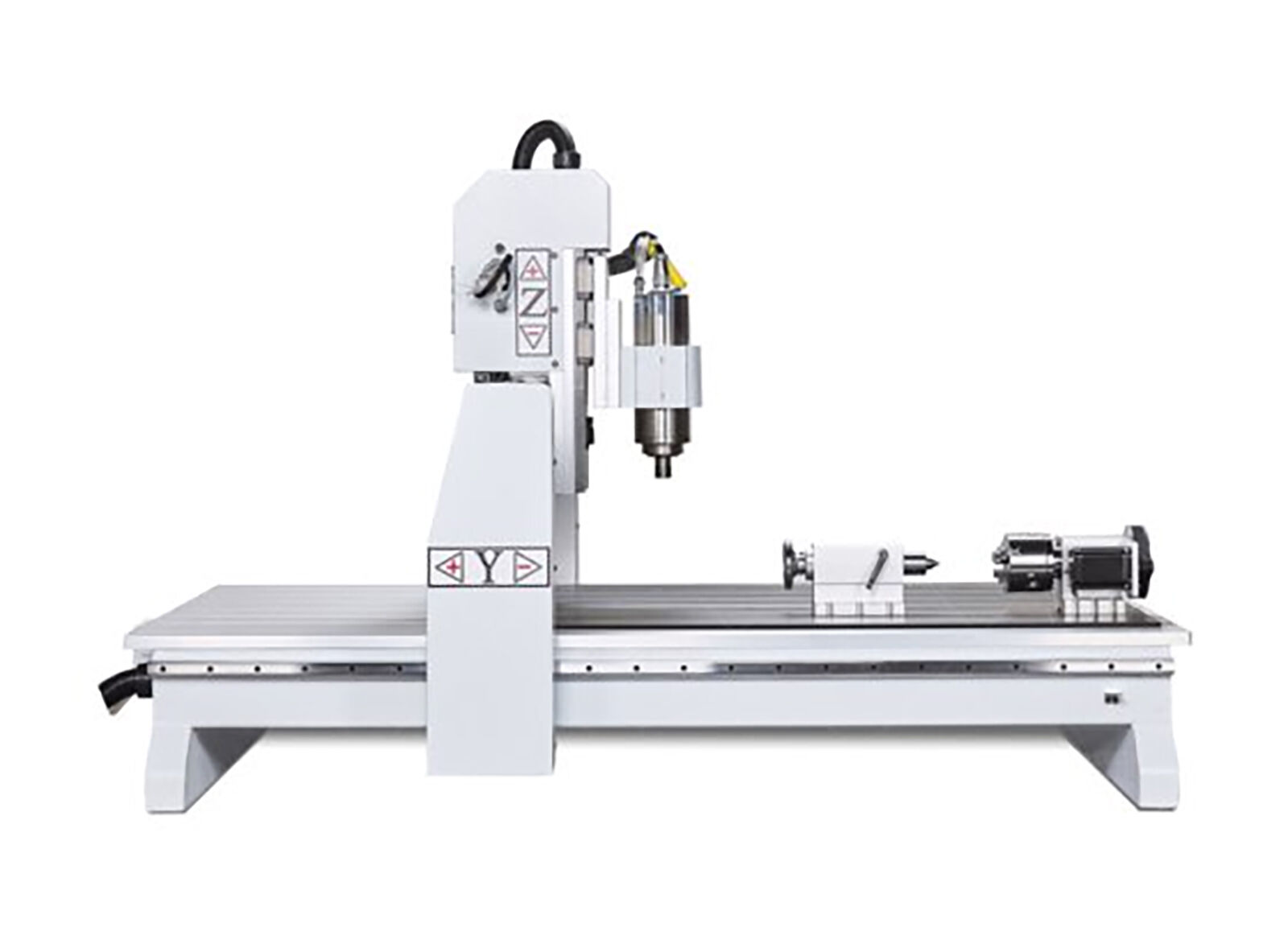

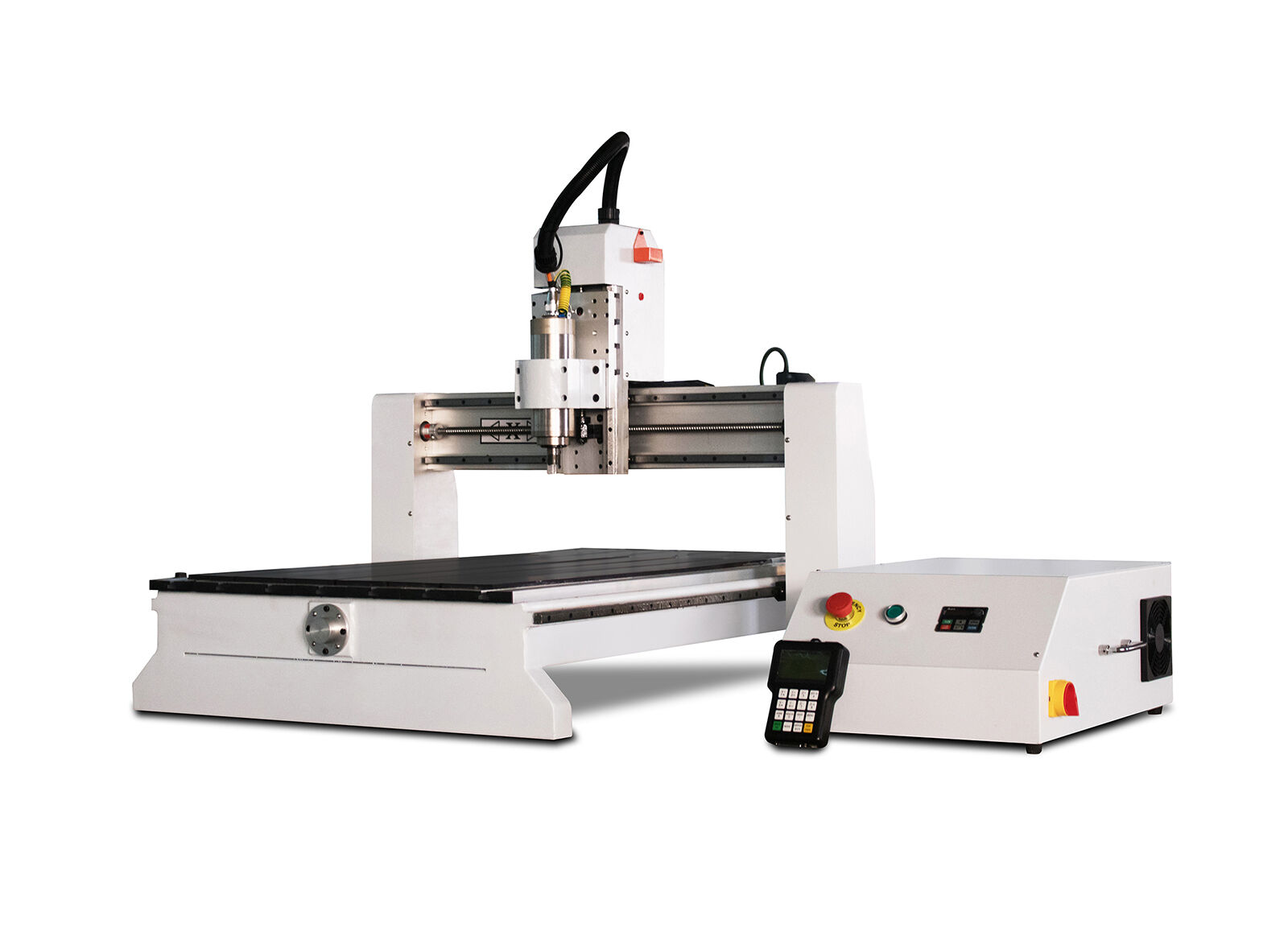

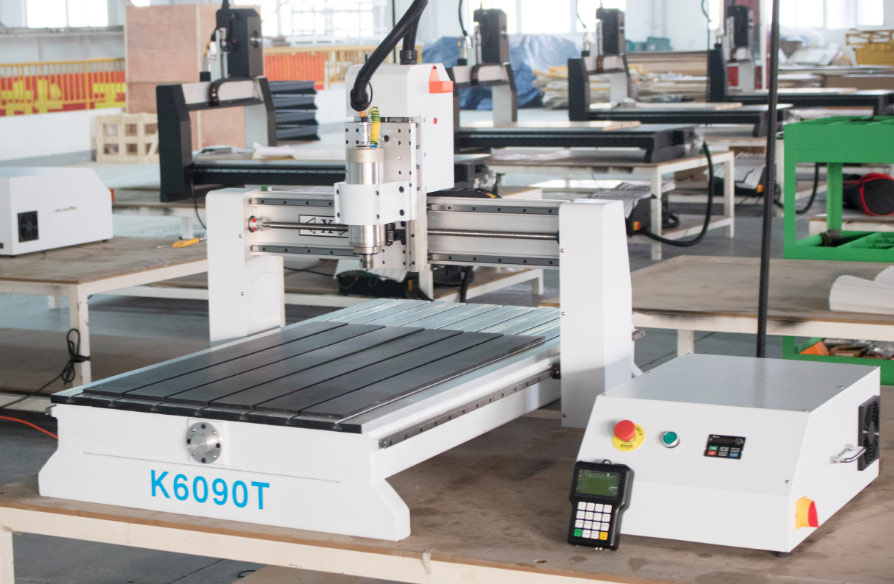

Mini Desktop 6090 CNC Router
K6090T CNC Router uses 2.2KW spindle and stepper motors, which are more powerful and efficient. Max moving speed is 8000mm/min and spindle speed range is 0~24000rpm.Control board, power supply, emergency stop, and wires are integrated into a newly design box, which is simple for operation, easy to clean and safe.
Controller : DSP A11
Working size:600x900x150mm
Spindle:2.2kw water cooling
Request A Quote
Product Description
QUICK CNC bench top CNC router is a small cnc router ideal for prototyping and smaller production runs. It features a work envelope of 24″ x 36″ and includes an industrial-grade, liquid-cooled electrospindle. Despite its smaller footprint, it has the same accuracy and cut quality of much larger CNC machines and woodworking routers.
The working size can be designed to 600x1200 ,600x1200.
The 4th axis and the auto tool changers is also available .
1. Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free,thus always keep machine accurate.
2 .Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
3. The unique reality of the 3-axis screw, the machining accuracy is more accurate.
4. The router spindle is very high precision and water-cooled. which keeps the spindle at a constant temperature and maintains longevity.
Video
Parameter

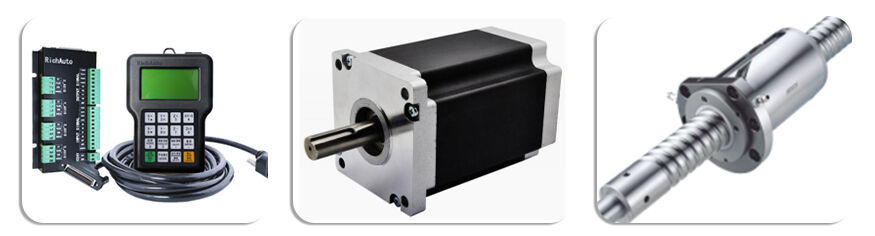

Accessories and Advantage
Hand controlled system, DSP A11
There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto A11 controller is a powerful, lightweight and easy to use controller .
2.2kw water cooling spindle
The router spindle is very high precision and liquid cooled cooled. which keeps the spindle at a constant temperature and maintains longevity.The power is 2.2kw ，And their is dust hood fits onto the router spindle .
3 axis ball screw
This small CNC routers that feature: welded, one-piece steel frames for quick assembly and accurate alignment from the start. The three-axis ball screw design also improves the accuracy of processing .
Application
Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.
Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....
Artwork and Decoration:wood crafts, gift box, jewelry box.
Other:Relief sculpture and 3D engraving and Cylindrical object.
Related Products
K6090ATCThe Desktop 6090 CNC Routers with auto tool changers are popular for prototyping, small production and home workers alike, this desktop CNC routers comprise of space-saving machines at affordable prices with great features. As excellent starter machines, these CNC routers can produce a wide variety of designs with high precision.
The machine features a 3-5 position ISO 20 Tool Changer
The upgrade Handheld DSP B57 controller with colour screen displays the tool path and the G-code during design and production.
Specs:
2.2kw water cooling spindle
stepper motor
handheld controller
Delta inverter
T slot table- K6100ACNC router 6100 is a small footprint machine, machines are manufactured from high quality steel, All frame work and gantry have been precisely engineered to create a robust and solid base for each machine.
The working size can be designed to 600x1000 or 600x1200mm .
Controller : DSP A11
Working size:600x900x150mm
Spindle:2.2kw water cooling - k4040TK4040T is the smallest size of our small engraving machines.
It's very suitable for making wooden handicrafts, small batch production or even home workshops .
K4040T mini cnc router fixed with 1.5kw water cooling spindle and a handheld controller . The movable table is also a feature . - K30MT 1212K30MT CNC router is an entrance level heavy duty designed machine.
A distinguishing feature of this machine is the racks on the X and Y axis, which provide an impressive travel speed for a table of this size. Performance, affordable prices and high-quality products are no opportunities for competitors.
