Mini CNC Router

MINI cnc router K6100A

CNC router 6100 is a small footprint machine, machines are manufactured from high quality steel, All frame work and gantry have been precisely engineered to create a robust and solid base for each machine.
The working size can be designed to 600x1000 or 600x1200mm .
Controller : DSP A11
Working size:600x900x150mm
Spindle:2.2kw water cooling

Request A Quote


Product Description

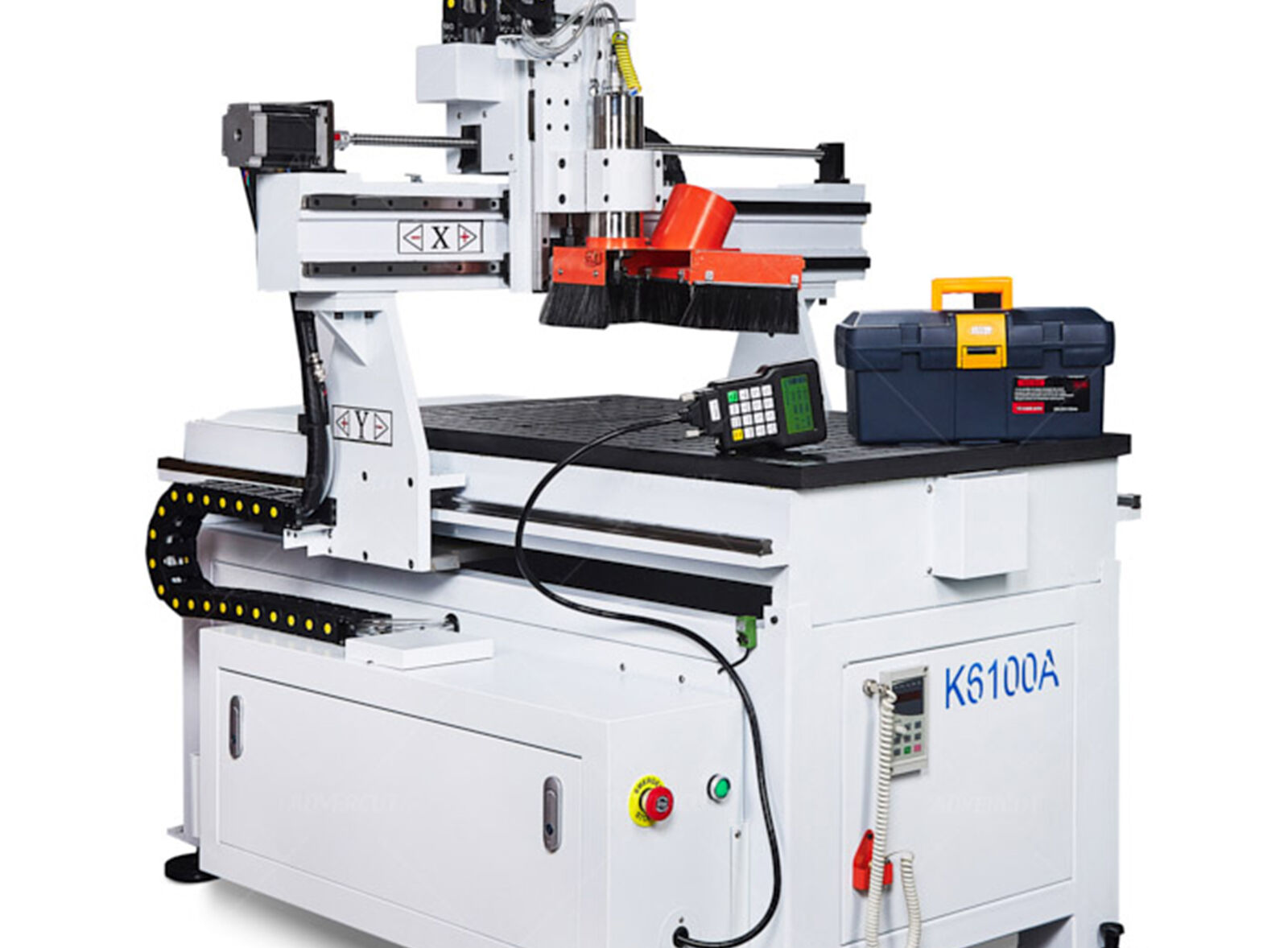

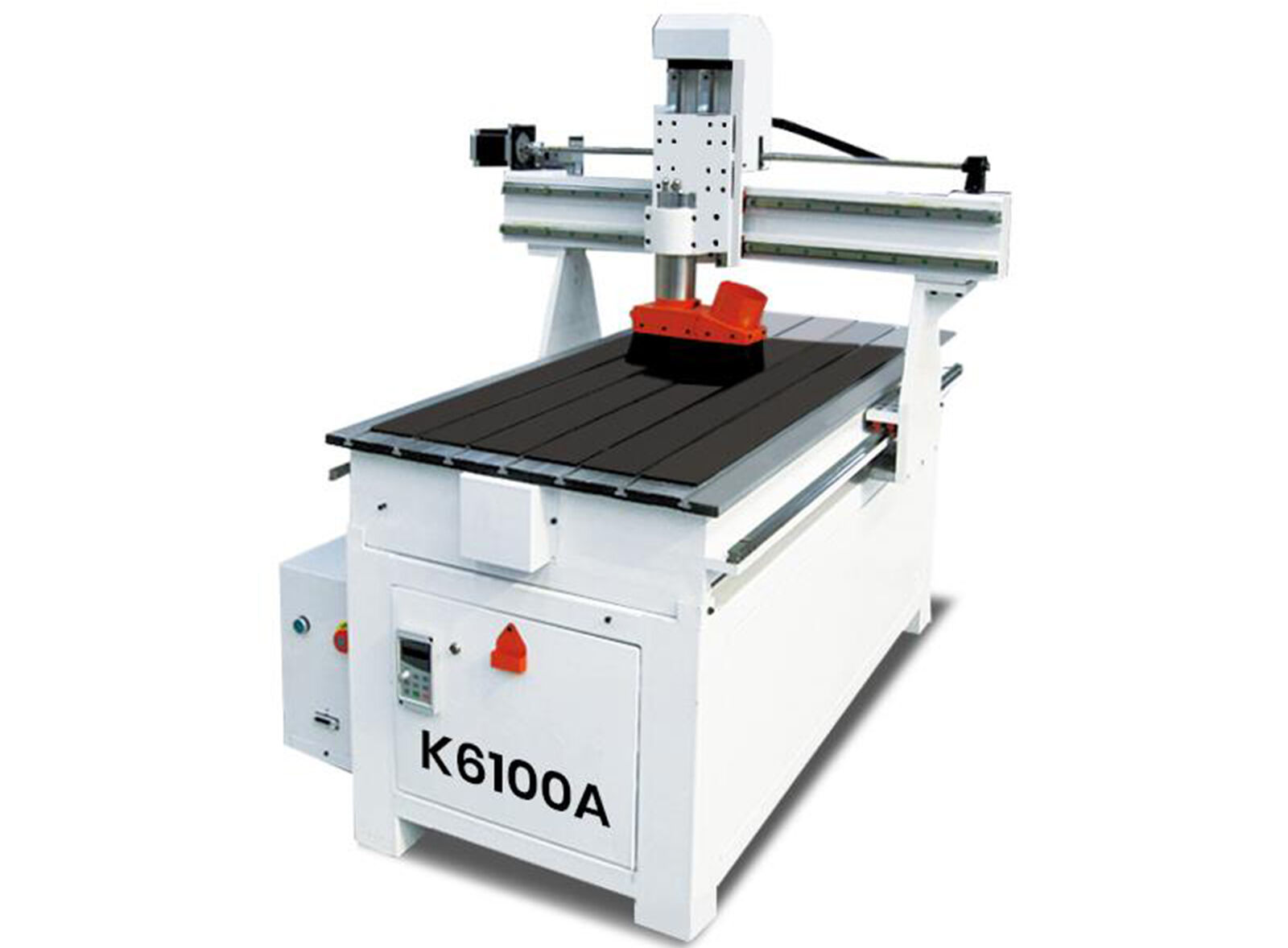

K6100A is the heaviest of our small engraving machines .

It is popular for prototyping, small batch production or even home workshops,

it is a space-saving professional design at an affordable price with great features.

The 4th axis and the auto tool changers is also available .

1.Cast steel structure makes the body more stable and high precision Germany ball screw.

2. It is good at engraving on brass, aluminum,plastic,acrylic and MDF etc,with high precision, It can meet different kinds of engraving.

3. It has the excellent performance with the features of recarving after stop and the power failure restoring.

4. It is easy to learn and operate the control system and master the application in a short time.

MINI cnc router K6100A (5).jpg

Send Inquiry



X-Y-Z axis working area600x1000x200mm600X1200X200mm
Repositioning resolution0.02mm
System resolution0.025mm
X-Y-Z movementBall screw
Max. speed8,000mm/min
Max.cutting speed6,000mm/min
Spindle2.2kw water cooling spindle
Spindle speed24,000 RPM
Inverter power2.2kw
Drive motorsStepper motor
Working voltageAC220V/50-60Hz
Command codeG code
Computer interfaceUSB 2.0
TableT-slot table with mechanical clamps
ControlsDSP A11
Tool sensorIncluded
OptionVacuum table with 2.2kw pumpRotary axis

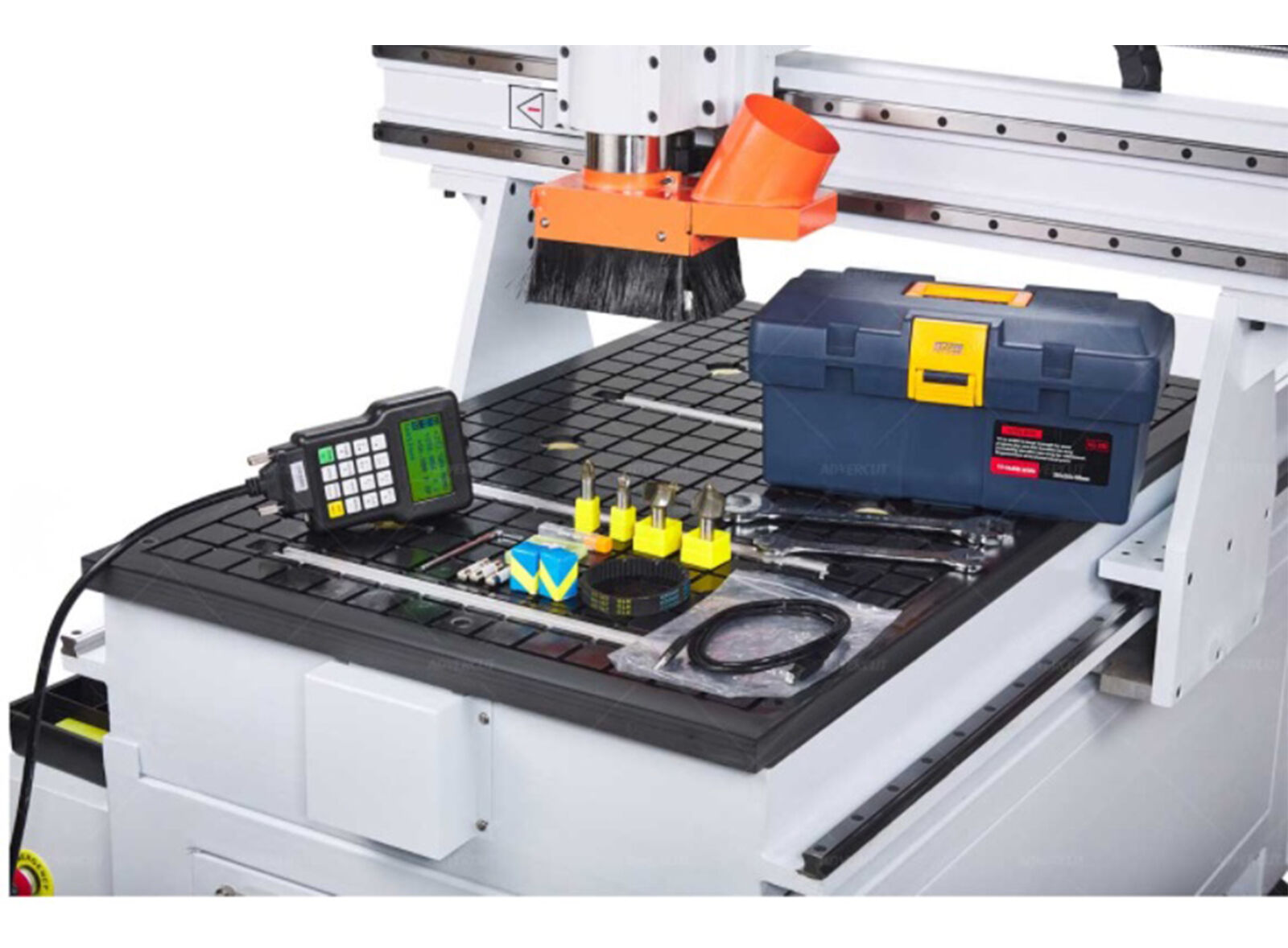

Accessories and Advantage

Hand controlled system, DSP A11

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto A11 controller is a powerful, lightweight and easy to use controller .

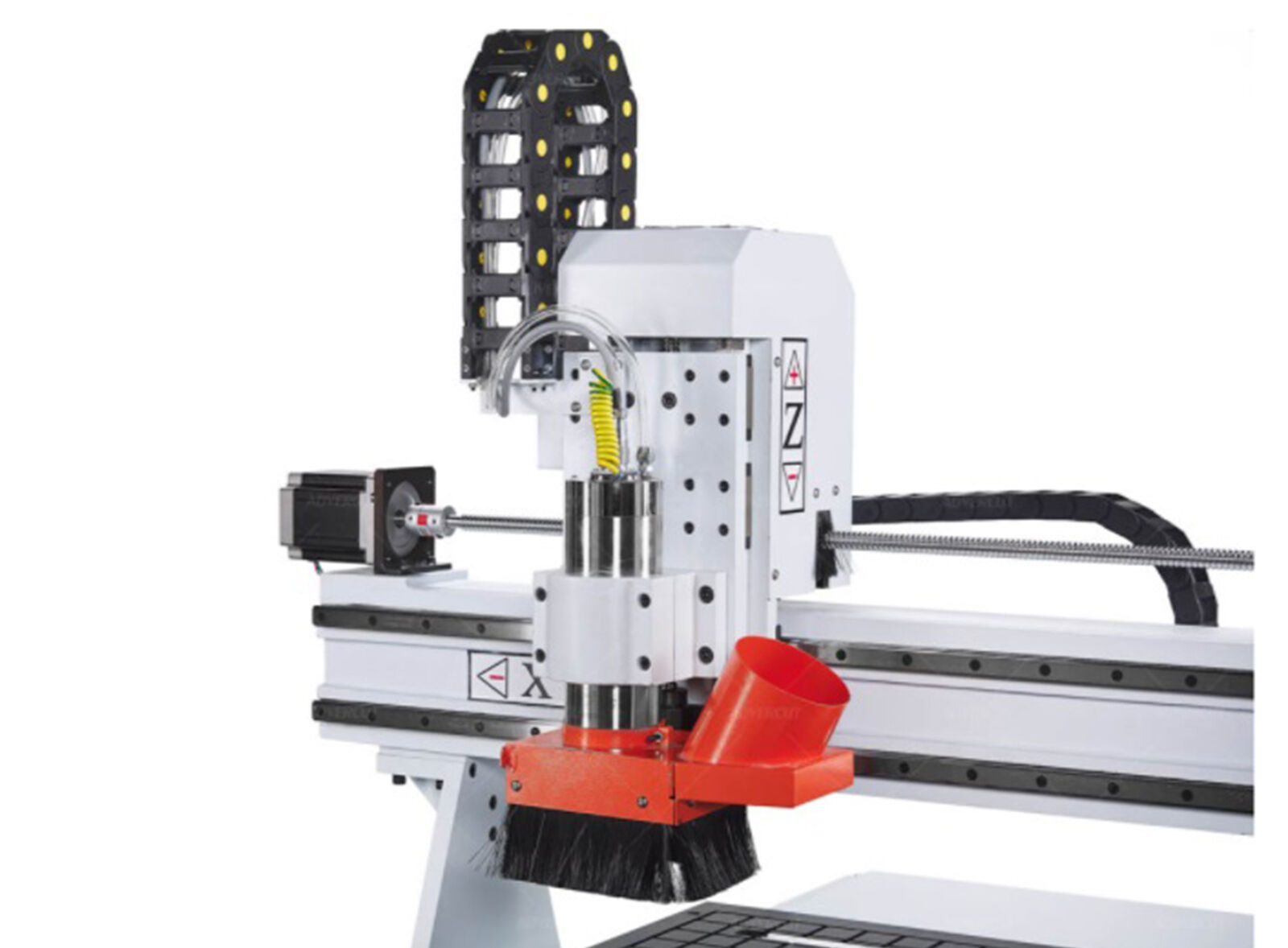

2.2kw water cooling spindle

The router spindle is very high precision and liquid cooled cooled. which keeps the spindle at a constant temperature and maintains longevity.The power is 2.2kw ,And their is dust hood fits onto the router spindle .


This small CNC routers that feature: welded, one-piece steel frames for quick assembly and accurate alignment from the start. The three-axis ball screw design also improves the accuracy of processing .

Rails and motor

The high-precision stepper motor and Taiwan guide rail make the machine run faster and the processing is more perfect,Main types of processing:engraving,cutting,3d milling ,drilling etc .

mini cnc router 5.jpg

Send Inquiry


Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
