3 AXIS

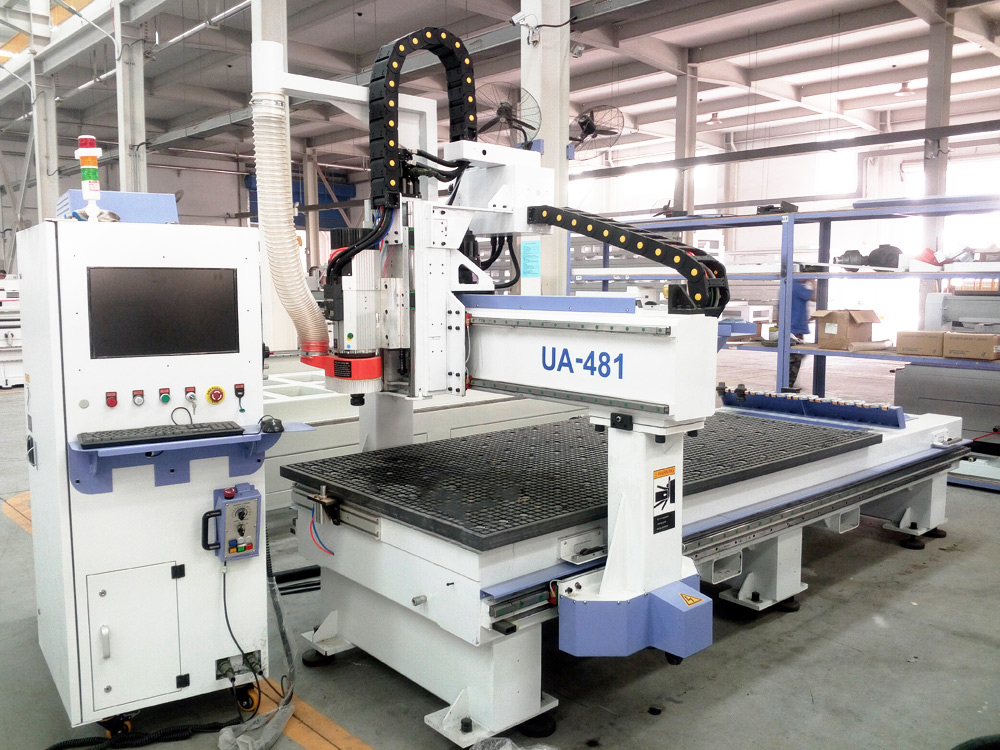

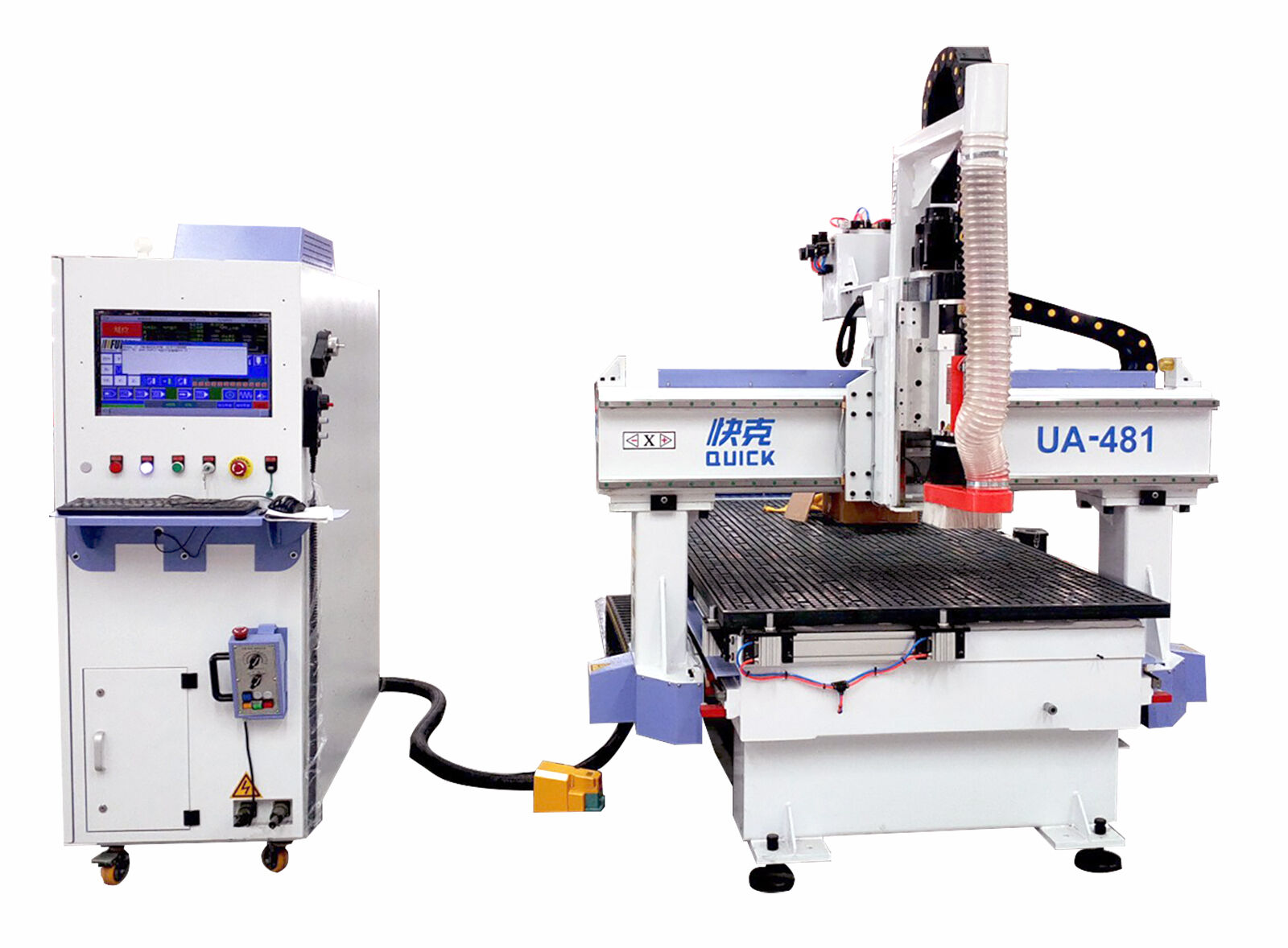

Nesting cnc router with auto tool chanegrs UA-481

UA-481 is a master-class CNC machining center. It uses the best parts in the world with a tempered heavy-duty bed,it can meet your machining requirements with the highest quality.
8 pcs linear tool changer make it easy to complete highly complex jobs.The best German Becker pumps and China Tongyou pumps for you to choose.Can be upgraded to a rotating spindle for processing the side of the sheet.
Spindle :9KW HSD from Italy
Motor :Japan yaskawa servo motor
Controller :Taiwan Syntec
Table :double layer vacuum table

Request A Quote

INQUIRY

Product Description

Within our UA serials selection, you’ll find incredibly stable large CNC machines featuring one-piece steel frames. These models are much more reliable than many CNC machines you find elsewhere at similar prices. In addition to a liquid-cooled electrospindle, which helps with long production cycles, each of our UA routers also features a user-friendly control system that’s easy to operate.

  1. The heavy-duty bed is tempered to eliminate the stress and will not be deformed during high-intensity work.

  2. Double-layer vacuum table, with famous brand vacuum pump, stronger adsorption capacity.

  3. The main parts of the machine, such as the spindle, motor and transmission system, are all made in Germany, Japan and Taiwan.

  4. Powerful Taiwanese Syntec control system, supports up to 6 axis, stable and easy for machine function expansion.

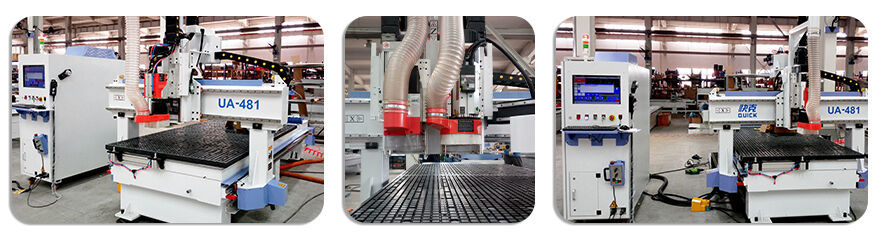

Nesting cnc router with auto tool chanegrs UA-481.


Send Inquiry

Video


Parameter


ModelUA481
X-Y-Z axis working area1,220 x 2,440 x 200mm
Machine size2,100 x 3,800x2300mm
Repositioning resolution0.02mm
X-Y movementrack and pinion, gear drive
Z movementball screw drive/Taiwan
GuideLinear 30 square/Taiwan
Max. speed80,000mm/min
Max. cutting speed50,000mm/min
Spindle power9KW   HSD air cooling
Auto tool changerlinear   type with tool shank
Spindle speed24,000rpm
Inverter power11kw
Drive motorsYASKAWA   servo motor 850W
Working voltageAC380V/50-60Hz,   3-phase
TableDouble   layer vacuum table
software freeAlphacam
controllerSyntec
pop up pinsx-axis 2 pcs y-axis 3 pcs
option

Becker pump ,

C   axis

Boring head

 Aggregate head

Rotary  axis

Accessories and Advantage

PC type controller Syntec

Based on the PC operating platform, it can support up to 6-axis system with high expandability and powerful functions. Wireless handwheel,make the operation more convenient and safe. The transmission speed is faster than panel type. It is easy to maintain and the computer can be replaced directly.

9KW HSD air cooling spindle

The spindle is Italian HSD, which has the characteristics of high speed, low noise, high temperature resistance and long life.

IP65 waterproof and dustproof, can carry out heavy cutting.

Heavy frame and strong transmission

The X and Y axis are driven by rack and 30mm guide rails, and the Z axis is a ball screw, both of which are of world famous brands.This transmission mode is matched with the heavy bed, which improves the processing capacity and efficiency of the machine.The strong gantry supported by the column makes the processing process more stable and accurate.

Servo motor and driver

The machine adopts the famous Japanese Yaskawa servo motor with a resolution of 24bits, which is one of the best motors on the market. Compared with stepper motors, closed-loop servo motors have the characteristics of high accuracy, fast response speed and high load capacity.The addition of a reducer can more accurately control the speed of the motor and increase the output torque.


Nesting cnc router with auto tool chanegrs UA-481



Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
