3 AXIS

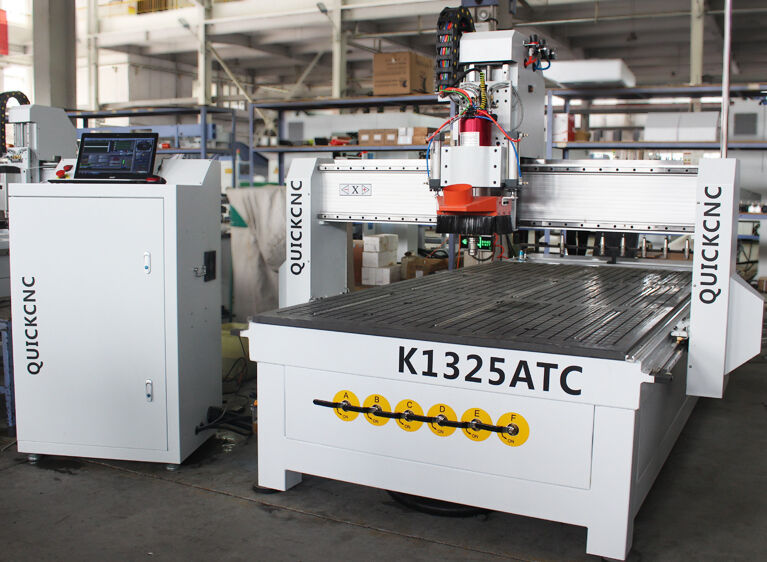

1325 ATC woodworking CNC router machine

K1325 ATC 8 pcs woodworking machinery is the most economical choice in basics wood router,it has first class components--high-frequency spindle, controller system support drive and spindle error alarm function, high precision ball screw rod, Taiwan self-lubricating and dust-proof square linear guides, etc.Suitable for a variety of processing techniques, such as nesting, routering and engraving.It is well-suited for panel furniture, office furniture, 3d wood cabinets production and so on.

Request A Quote

INQUIRY

Product Description

K1325 ATC 8 pcs ATC woodworking cnc router machine is the most economical choice in basics wood router,it has first class components--high-frequency spindle, controller system support drive and spindle error alarm function, high precision ball screw rod, Taiwan self-lubricating and dust-proof square linear guides, etc.Suitable for a variety of processing techniques, such as nesting, routering and engraving.It is well-suited for panel furniture, office furniture, 3d wood cabinets production and so on.



Send Inquiry

Video

Parameter


SPECIFICATIONS FOR CNC ROUTER MACHINE
Model nameK1325 ATC1 Set
Working areaX travel1300 mm
Y travel2500 mm
Z travel200 mm
X-Y-Z movementRack and pinoin,ball screw

GuideLinear ¢20 square/Taiwan

Max. speed35m/min
Max. cutting speed25m/min
Spindle power5.5kw ATC water cooling1 PCS
Spindle speed6,000 – 24,000 RPM
Inverter power5.5kw
Working voltageAC380V/50-60Hz,3-phase
TableVacuum table1 PCS
MotorStepper motor3 PCS
Control systemDSP B57/Mach3/Syntec 1 PCS
SoftwareArtcam,Alphacam
Dust systemDust hood for spindle1 PCS
Optional1. Other size(1530,2030,2040)

2. 4th axis

3. Dust collector

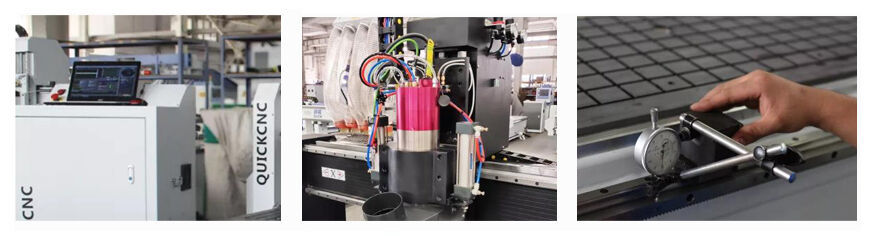

Accessories and Advantage

5.5kw spindle

Imported bearings with good quality, long working life Application: Milling,Engraving, Drilling.

High speed, low noise, Higher precision.


T-slot vacuum working table

The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.


Mach 3 control system

Mach3 turns a typical computer into a CNC machine controller. Mach3 works on most Windows PC's to control the motion of motors

(stepper & servo) by processing G-Code. ... While comprising many advanced features, it is the most intuitive CNC control software available.




Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.

cnc router samples.png
