cnc machining center with PTP

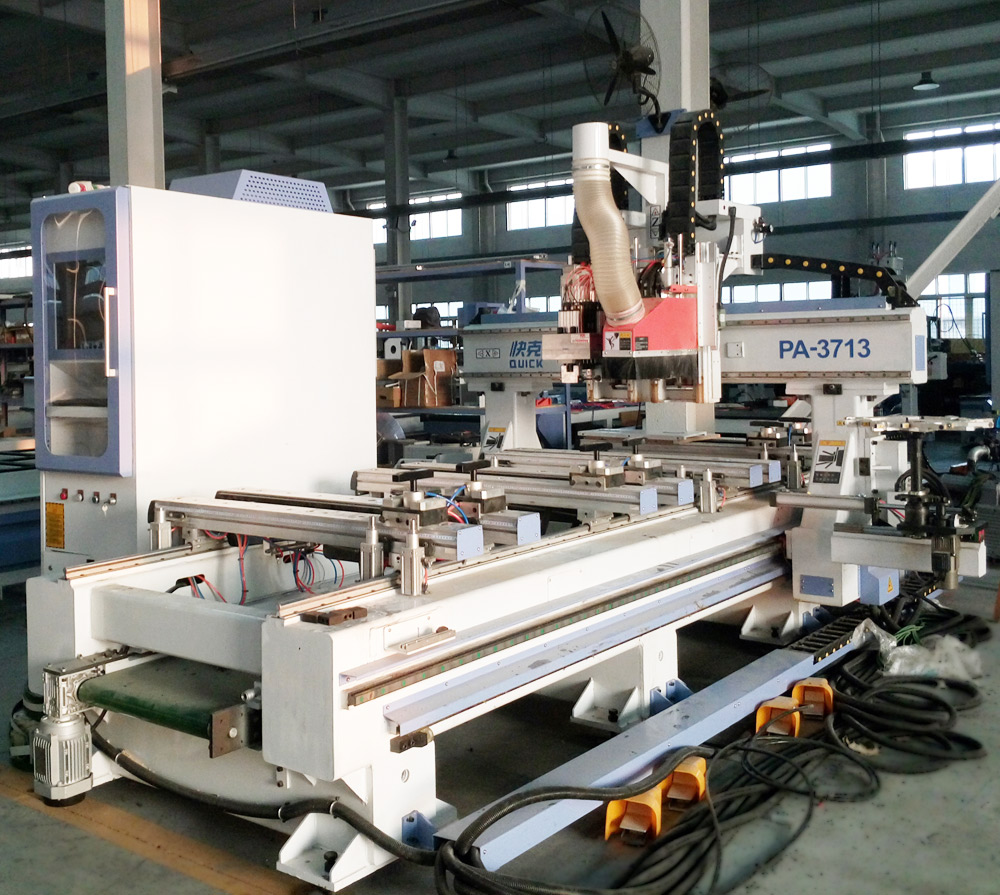

PA3713 is a heavy-duty machining center. The product is suitable for the processing of diversified and complex products. It has comprehensive functions: router milling, row drilling, cutting, side milling, side drilling, side cutting, etc.. Especially suitable for the processing of solid wood combination wooden doors and solid wood paint-free doors, which can be formed at one time .The working size can be designed to 1300x3700mm /1300x5000mm .

Request A Quote


Product Description

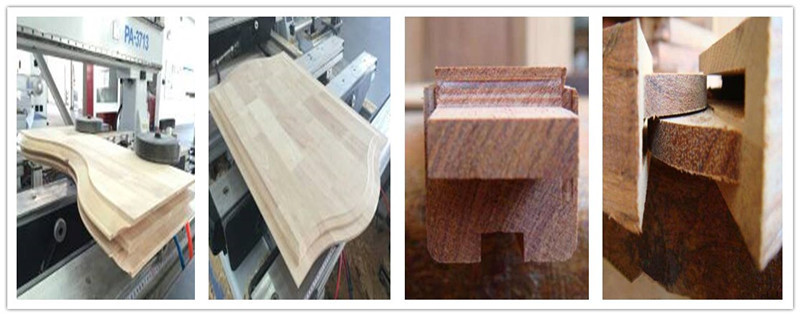

  • The parts of the solid wood combination door can be processed at one time, and the seven-piece group time is about 25 minutes.

  • The production processes of milling, sawing, and drilling can simultaneously complete the processing of inner line forming, mortise holes, and double-sided door cores.

  • Break through the traditional processing mode, replace six traditional processing equipment at the same time, and greatly shorten the production process and processing time.

  • Specializing in the production of combined solid wood doors, solid wood arched doors and windows, solid wood decoration frames and other processing.


Send Inquiry



ModelPA-3713 (5000mm in length optional)
X-Y-Z axis working area1,300 x 3,700 x 200mm
Machine size4,000 x 1,700 x 2,100mm
X-Y movementRack and pinion, gear drive
Z movementBall screw drive
GuideLinear ¢30 square
Spindle12kw Italy HSD
Spindle speed24,000rpm
Tool magazine8 pcs tools, Carousel type
Boring headHSD 7V2H-2.2kw
Inverter power18.5kw
Drive motorsYaskawa Servo
Working voltageAC380V/50-60Hz, 3-phase
ControlsSYNTEC PC based system/Taiwan

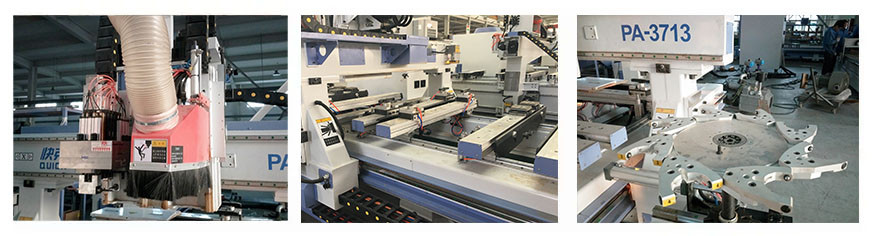

Accessories and Advantage

  • Taiwan Syntec control system

The machine is controlled by the Taiwan controller, which ensures that the machine can be operated without a computer.

The task is loaded into the controller's memory when connected to a PC via a USB drive or directly.

  • Spindle and Boring head

Electrospindles, boring heads are designed and manufactured by HSD, the global leader

in the mechatronics sector.

  • Servo motors

Yaskawa brand is the best performance servo motor in Chinese market, Motor’s   max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high.In Y axis,we equipped with 1.1kw servo to increase the output torque.

  • PTP moving table

High-strength alloy PTP can be adsorbed on the table, the customer can move according to the size of the door panel kit, with a ruler and can be used with pneumatic clamps and adsorption blocks.


Send Inquiry


Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
