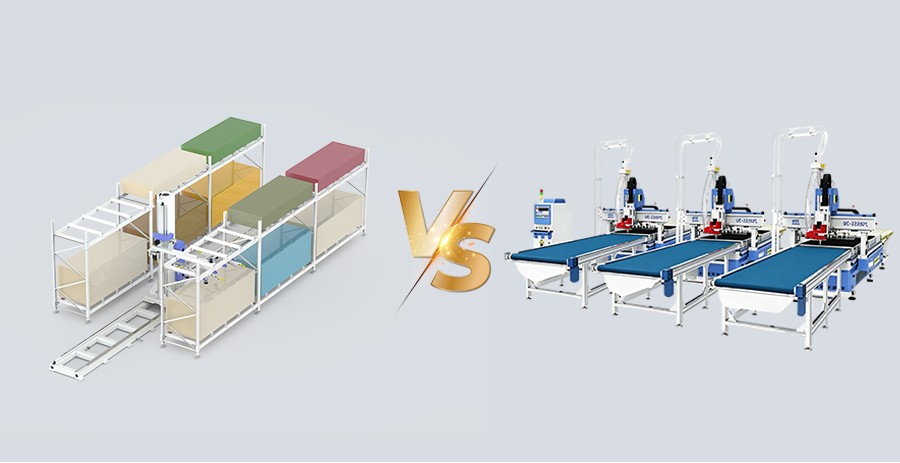

A single set of storage system shared by three machine units. One storage system feeds 3 cutting machines at the same time. It transports panels to outlets automatically for continuous run production.Compatible with beam saws and sliding table saws for multi functional plate preparation.

Zero Labor Plate Matching. A single set storage system eliminates the need for three dedicated plate matching operators. With annual personnel costs of CNY60,000 per person, you will slash CNY180,000 in labor outlay each year.

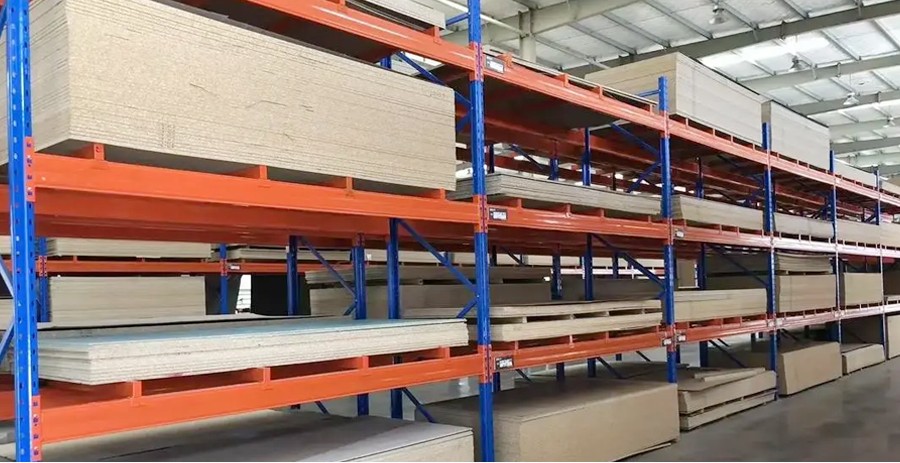

It supports retrofitting your existing racks. Both original vertical warehouses and conventional racks can be linked to the intelligent control system after smart upgrades. The reuse of current structures boosts production efficiency at reduced costs.

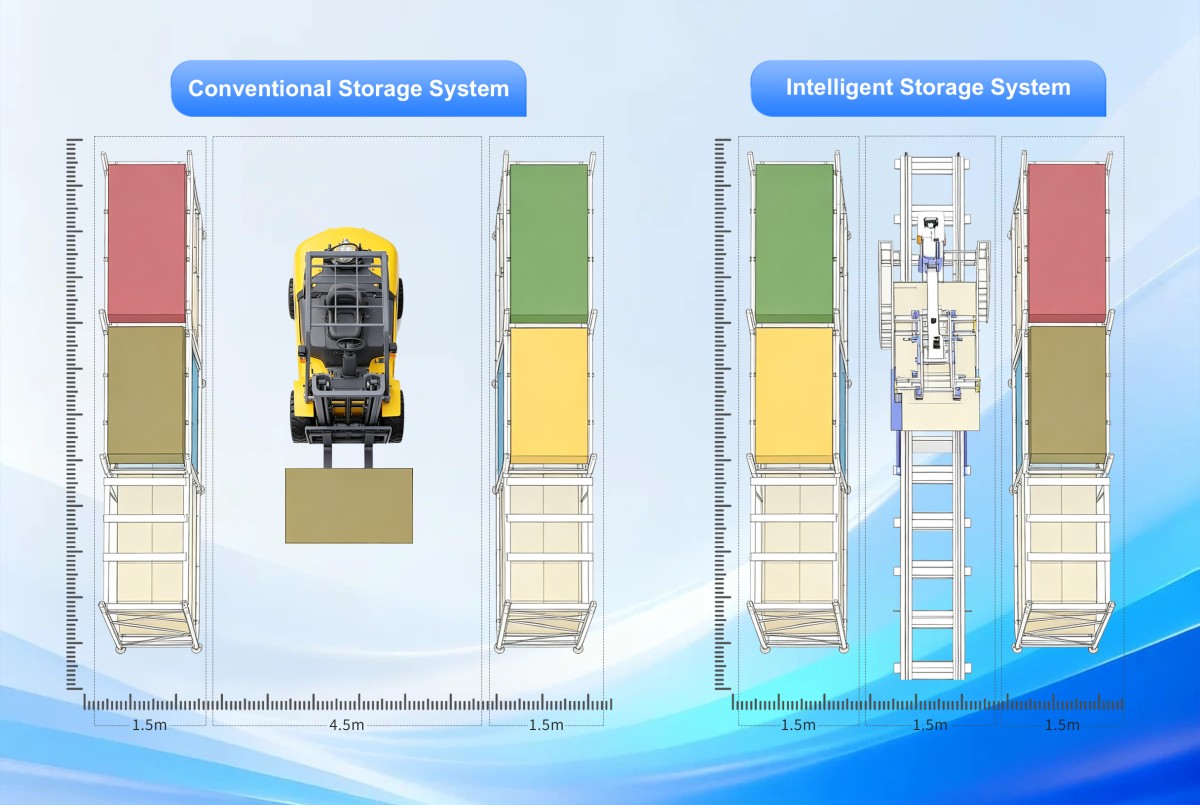

40% Less Floor Space Occupied. Versus flat form storage, Quick CNC 3D storage reduces floor space by 40% and allows flexible layout adaption.

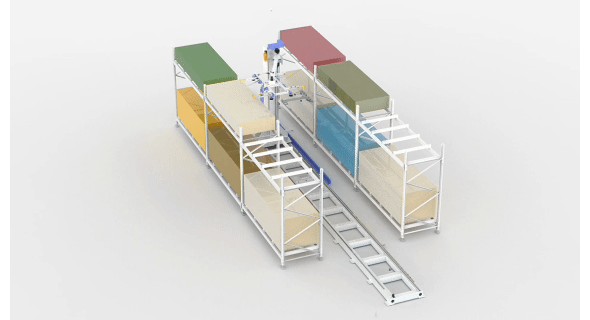

Dual Cutting Positions, Zero Downtime for Cutting. It is equipped with dual discharging positions. Panels are delivered alternately from the two stations. Cutting machines always receive materials, which truly delivers non stop cutting and continuous plate preparation.

Patented Sheet Separating Mechanism. Fitted with our patented sheet separating mechanism, the system is specially optimized for double sided PET panels and MDF boards. It effectively eliminates the vacuum adsorption effect between stacked panels.It ensures stable grabbing and clean separation, preventing board dropping and double sheet pickup.

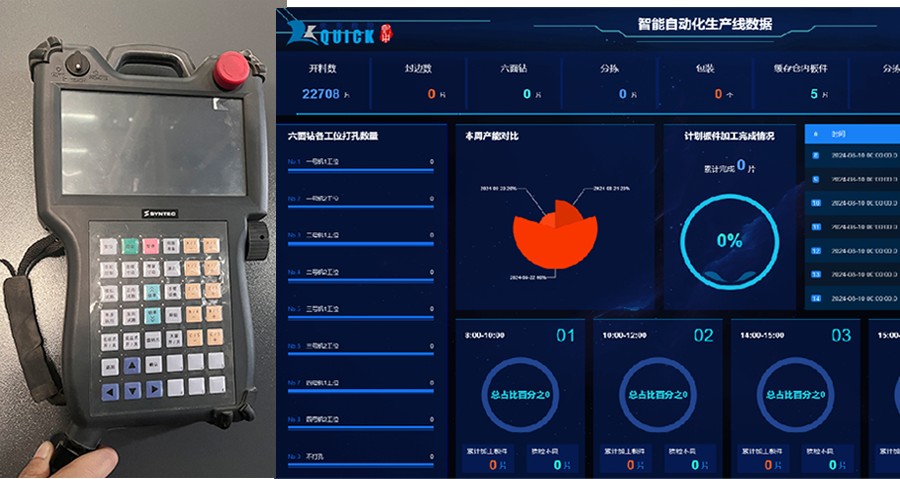

Specialized Control System for Storage Units. Breaking the limitations of traditional PLC, it adopts a dedicated storage control system with higher flexibility and superior stability, capable of adapting to complex production scheduling logic.

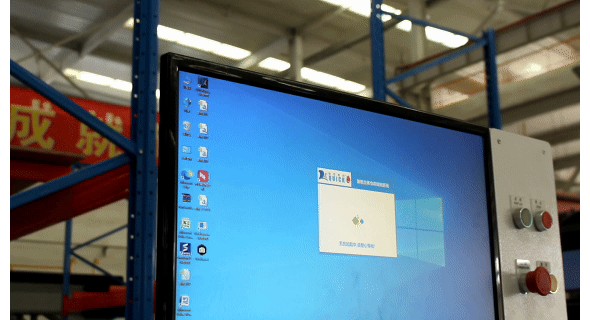

Dedicated Plate-Matching Software.Featuring dedicated plate-matching control software, supports one-click import of production orders and automatically plans material sequencing. It is fully compatible with one-drive-two production lines and integrated drilling & cutting machines.

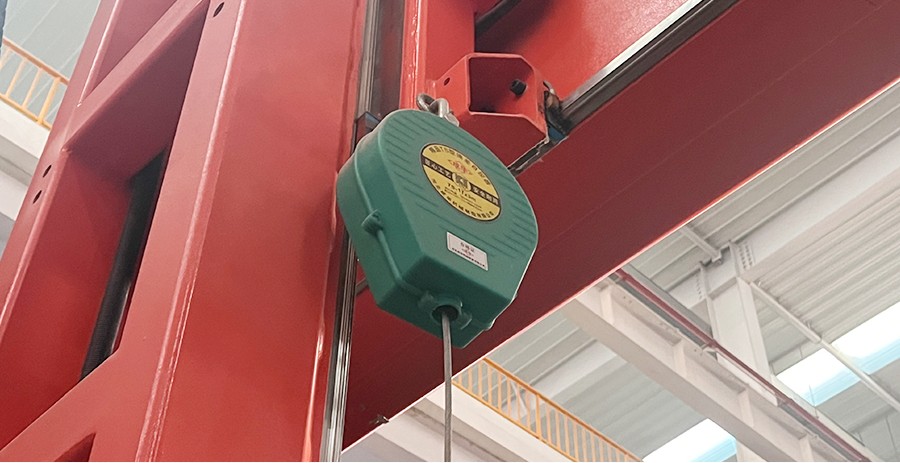

Safety Protection Devices. Safety protection devices are installed to prevent incidents such as the sudden dropping of sheets during loading and unloading, thereby ensuring production safety.

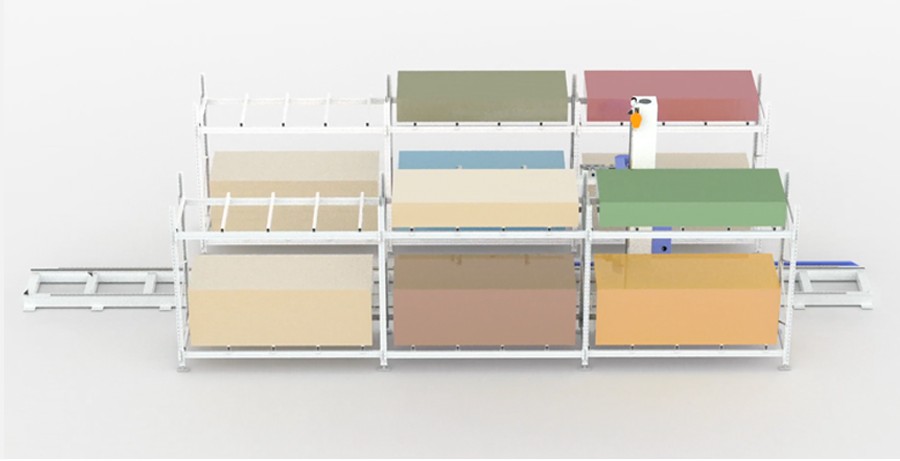

Flexible adaptation for board material sizes. Standard compatible panels: 4×8ft (1220×2440mm) and 4×9ft (1830×3660mm). Other sizes can be customized for diverse production needs.

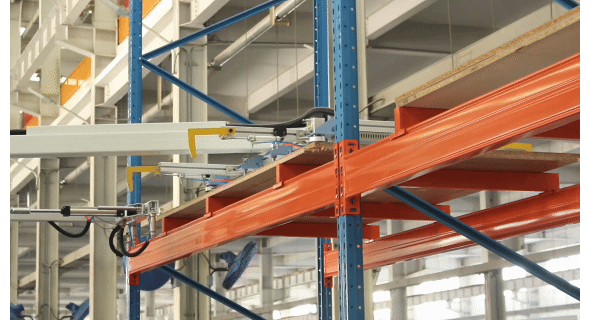

Material detection function with two level protection.

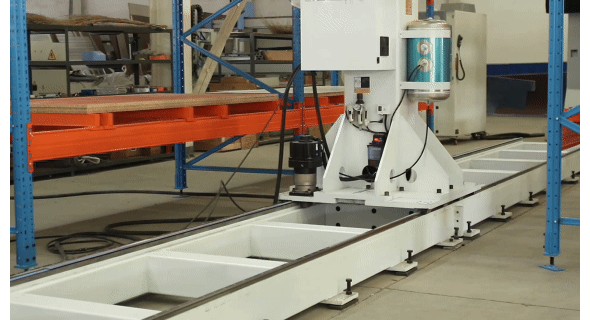

High strength reinforced machine bed. Four sided diagonal stiffeners on columns ensure stable operation.

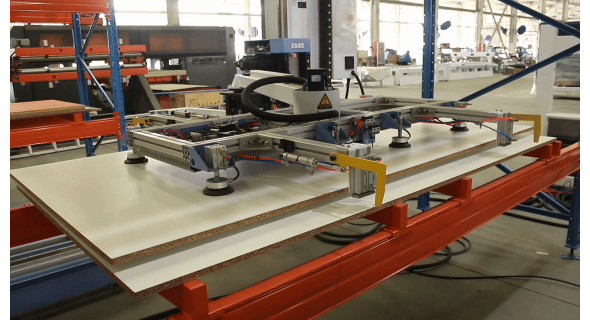

Equipped with 8 suction cup rotators for 180° panel gripping, effectively preventing panel damage.
