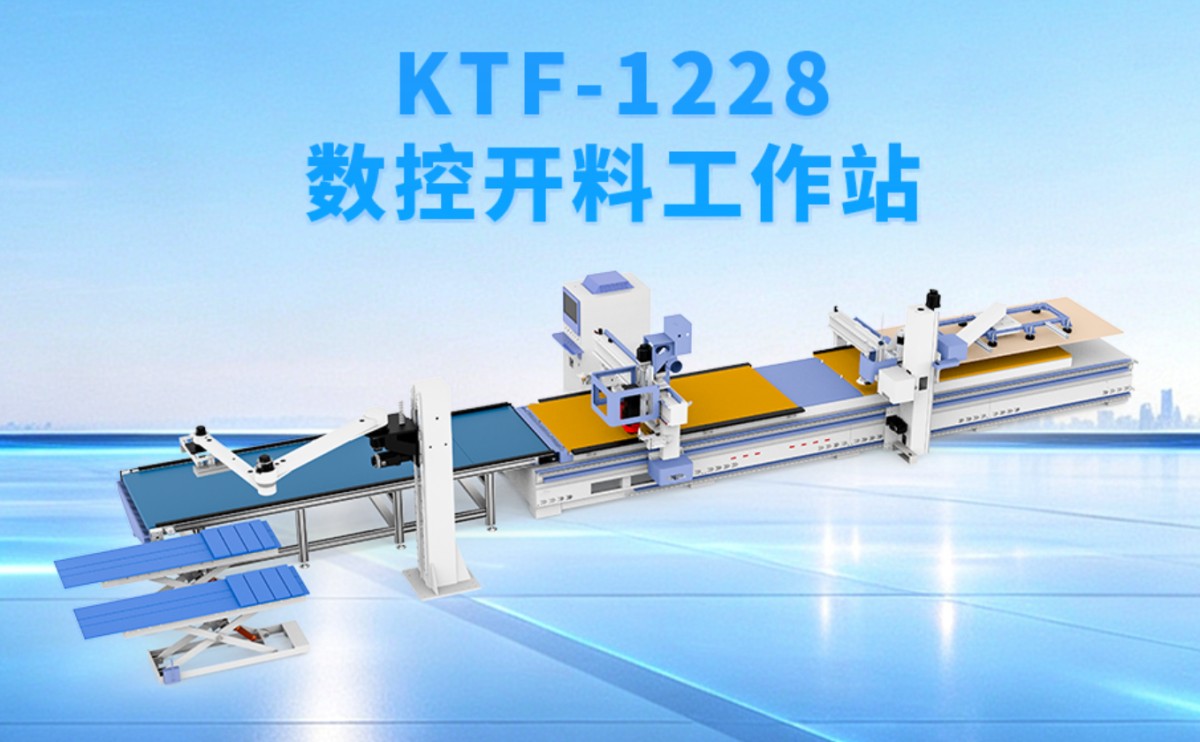

KTF1228 Intelligent Nesting Cutting Workstation. Processing Efficiency: 100–120 sheets per shift.

KTF CNC Integrated Nesting Cutting Machine

1. All-in-One Multifunctional Workflow

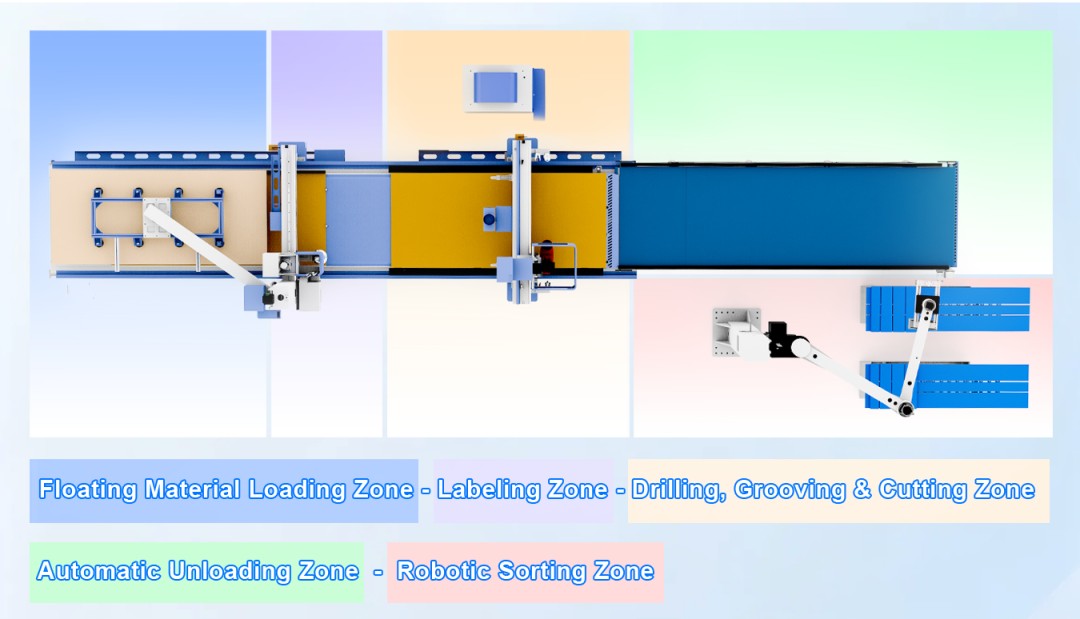

Full workflow: Floating swing arm loading → automatic labeling → drilling/grooving/cutting → auto unloading → robotic automatic sorting.

2. High Automation & Labor Saving

Loading, labeling and cutting run simultaneously without mutual waiting or interference. The automated workflow drastically boosts production efficiency and cuts labor costs significantly.

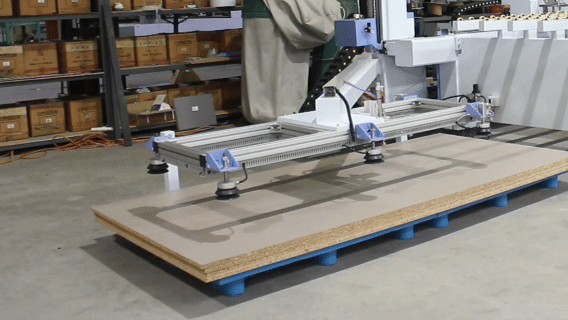

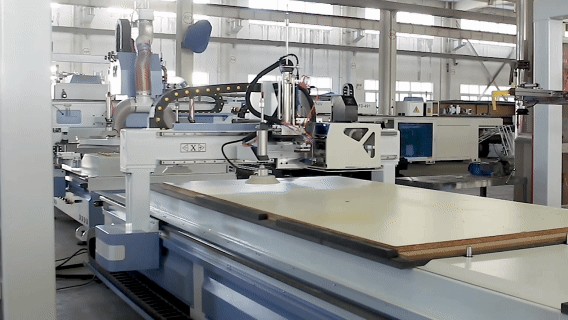

3. Scratch-Free Floating Loading

Adopts floating swing arm feeding, different from traditional pushing feeding, effectively preventing surface damage to panels.

4. Full Bundle Loading for Easy Operation.

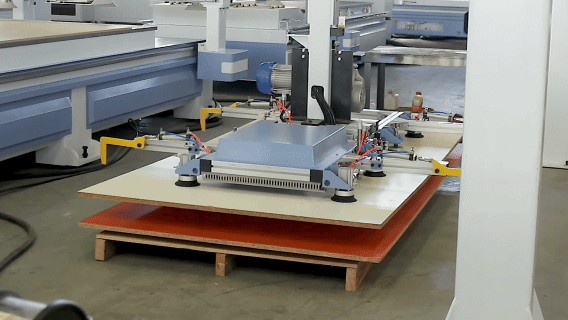

Exclusive suction cup design grips panels one by one to avoid grabbing multiple sheets at once.

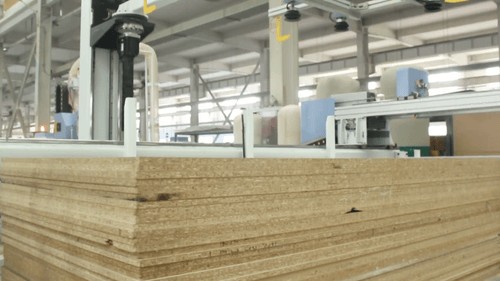

Capable of loading 70 pieces of 18mm-thick panels in one full bundle. No foundation pit required, eliminating frequent manual feeding.

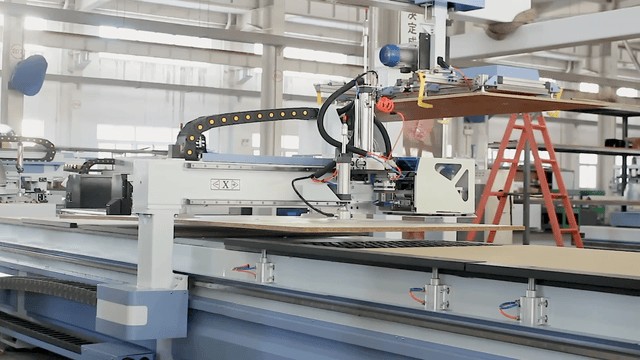

5.  Reliable Automatic Labeling.

Heavy-duty industrial full-auto labeler with 90° rotating labeling head, compatible with labels of all sizes.

6. High-Efficiency Intelligent Cutting

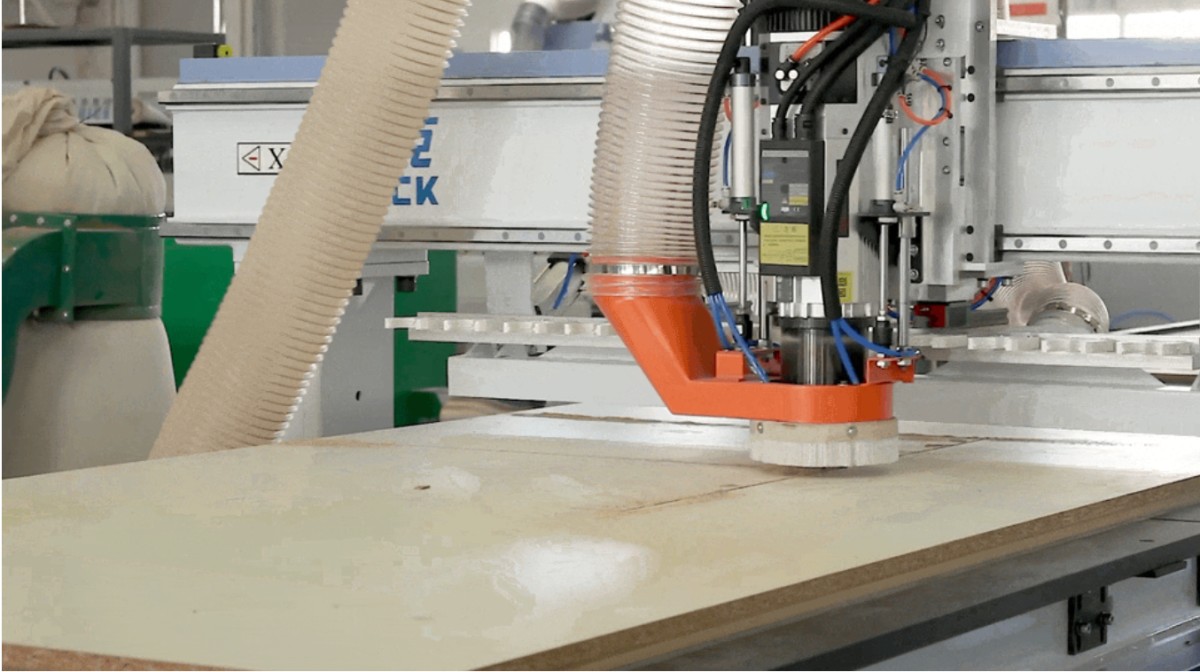

Equipped with high-power 9kW linear 12-tool change spindle to guarantee high-precision cutting quality.

7. Modular Optional Intelligent Material Warehouse

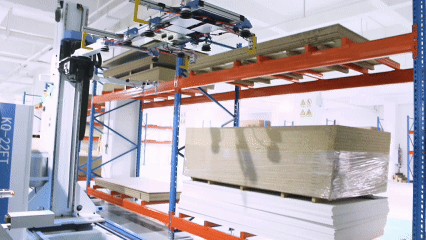

Optional intelligent stock library eliminates manual material preparation, saves floor space and achieves zero waiting during cutting.

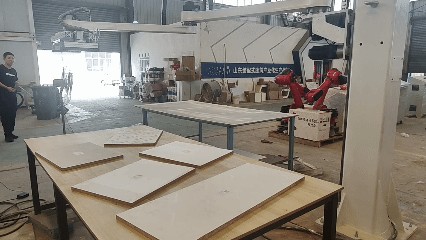

8. Modular Optional Robotic Sorting

Optional robotic picking module removes manual sorting work, delivering high efficiency and zero errors. Easily upgrade from single machine automation to flexible production lines.

Detailed Specifications

1.  Heavy-Duty Machine Bed



The machine bed undergoes strict aging treatment to release internal stress, ensuring no deformation and stable machining accuracy after long-term operation.

2.  Two-Stage Dust Removal System

Primary fully enclosed dust hood + secondary dust extraction system eliminates dust pollution and keeps the workshop clean.

3. Precision Tool Sensor

One-click precise tool setting with built-in air blowing cleaning function. Consistent tool setting accuracy maintained under complex cutting conditions.

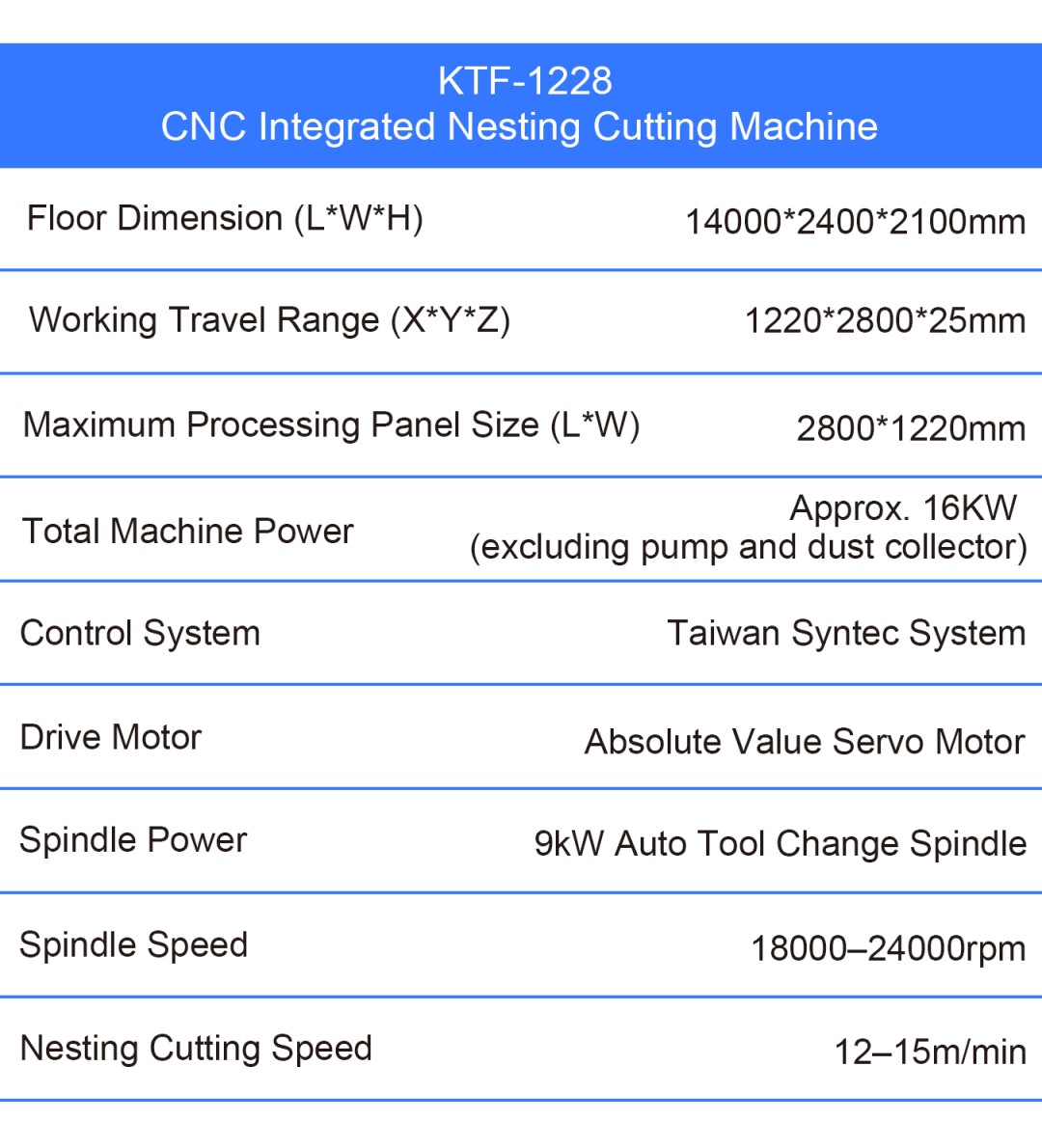

Parameters
