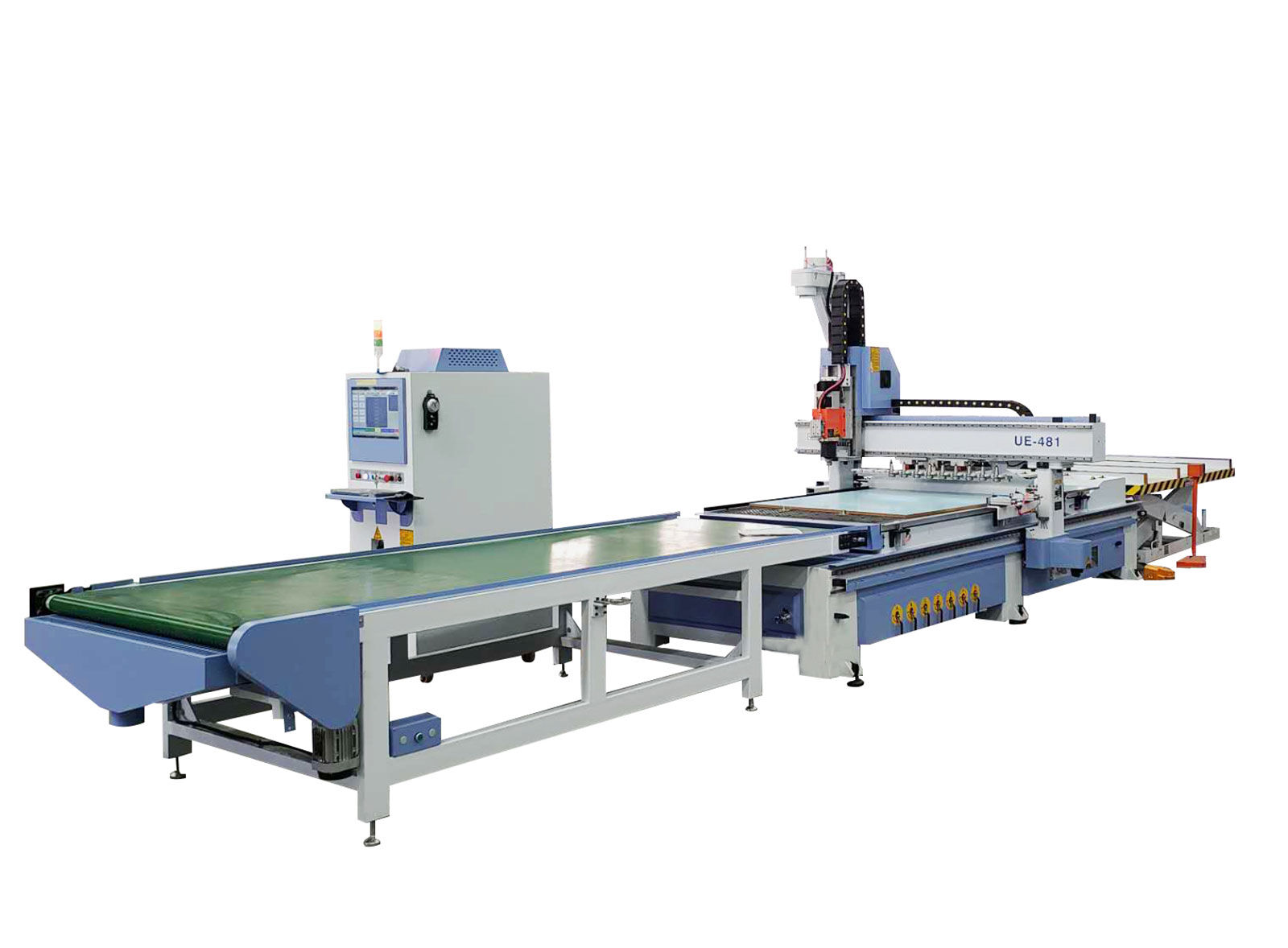

Automatic loading and unloading cnc router machine UE-491

The loading unit with suction cups allows the panel to be automatically loaded and positioned on the work table.Various solutions are available for cleaning the panel and the area around the machine, thus saving time for the operator.
The Gantry structure with dual motors is designed to increase precision and reliability standards for the execution of all nesting operations.

Request A Quote

INQUIRY

Product Description

HIGH RELIABILITY AND PRECISION OVER TIME

Automatic loading/unloading solutions enable significant increases in productivity

Quick auto loading and unloading UE-481 atc  cnc machine adopting the top domestic high-quality configuration, long service life.

Automatic loading and unloading saves labor time and cost, can meet various processing requirements of door panels/cabinets, has fast efficiency, and supports fast punching.

The working size/machine color can custom,and we provide many different choice for you.


  • This machine use SYNTEC control system, stable and high precision.

  • The machine is equipped with automatic tool sensor instrument, which saves time and zero error.

  •  The system has an automatic scheduling function; importing all files at one time and processing them in sequence will increase the efficiency and reduce the workload of workers.

  •  It can work continuously for 24 hours, processing 200 square meters of cabinet body , and can process 130m2 of cabinet door panels after 10 hours of work. Processed 300 carvings of interior doors and facades.


Send Inquiry

Video

Parameter

ModelUE-491
Working area1220X2440x200mm/1220*2800*200mm
Spindle9kw air cooling spindle
Spindle speed24000rpm
MotorServo motor
TableVacuum table
ATC12 pcs Linear type auto tool changers
ControllerSYNTEC
Pump5.5kw TongYou pump
IncludeAutomatic feeding platformautomatic unloading platform
Inverter11kw Fulling
GuideTaiwan Linear 25mm square
IncludeTool sensor
Z axisTBI ball screw
ReducerShimpo
SoftwareAlphacam
Repositioning resolution0.02mm
Voltage3phase 380V 50Hz
OptionColor/Germany Becker Pump etcOther size available

Accessories and Advantage

9KW Air Cooling Spindle

The spindle is passed test of  IP65 water proof and dust proof.the features are high speed and low noise. Heavy duty cutting is available for high precision and bearing abrasion.

Inside and outside air cooling system enable long time processing At low temperature and prolong spindle’s life

Taiwan SYNTEC controller

Support drive and spindle error alarm function

Support intelligent file checking function.

Parameter backup and restore function to prevent the loss of important parameters.

High anti-jamming intensity passes many CE tests.

Linear type 12 pcs auto tool changers

Tool change magazine with up to 12 spaces, rendering all tools and aggregates available at all times with no need for operator intervention when changing tooling between machining operations.

Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
