Vacuum Press Machine

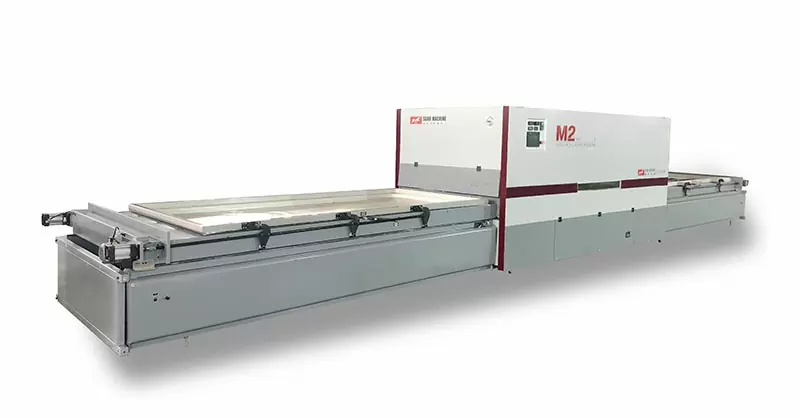

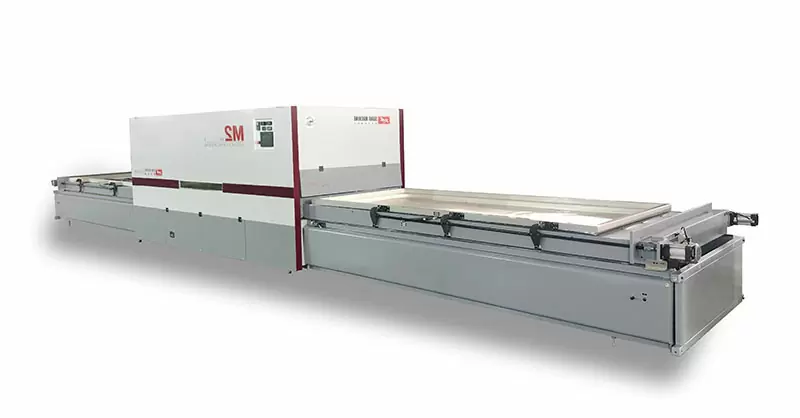

Vacuum membrane press machine M2-F3000
  • M2-F3000
  • M2-F3000
  • M2-F3000
  • M2-F3000

General Introduction:

The appearance and specification may change with improvement, and we will not give extra notice about such changes.

This machine can be used to paste PVC on furniture, cabinets, wardrobe, relief doors, decoration panels for walls and other abnormal decoration shapes. It also can press the veneer after installation of silicon rubber sheet.

vacuum press machine.png

Send Inquiry

Technical Specifications:

Exterior size:12000mm×1500 mm×1800mm
Working plate inner size:3000mm×1300(1100)mm
Maximum height of the work piece:50mm(including the height of  bottom support)
Rating working pressure:≥-0.095Mpa
General Power: about 28kw
Actual power consumption: about 6-7kw
Top temperature: about 200℃
Vacuum pump150L
Heatingup and bottom stainless electrical heating tubes with aluminum panels
Working table lockair cylinders automatically lock
Operationtouch screen

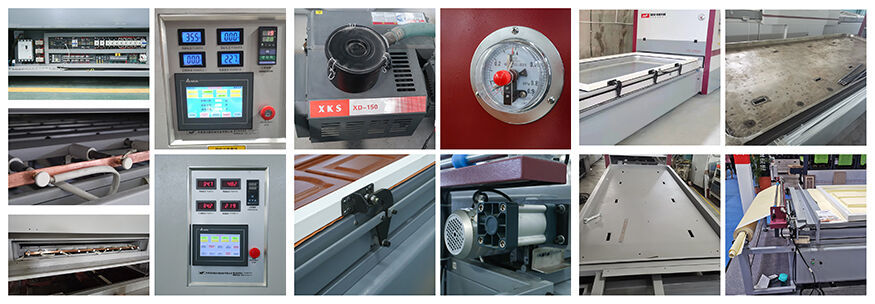

Accessories and Advantage

  • The machine’s operation is automatic and digitalized control. The main electrical equipments for control system adopt “Schneider”, “Weidmuller”, Taiwanese “Delta” PLC, Chinese”CHNT”. etc, operation panel with “Delta”touch screen.

  • Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.Aluminum panel with stainless steel heating tubes,3mm thickness copper bar conductivity ensure long using life.

  • Also equips bottom heating to improve the edges bonding strength and high gloss quality.

  • This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.

  • The vacuum pump 150L adopts German technology and feature low noise, freedom from pollution and long-time service..

  • Large volume vacuum tank. It charges with double channels so that it can work with strong power.

  • The working table automaticlly air cylinders lock,and PVC automatic cutters save manpower,improve the production efficiency.

  • Bottom tray adopts whole sheet steel plate to bend,after service long time,no air leakage and deformation. 10 air holes design,the vacuum suck easily,no blockage.

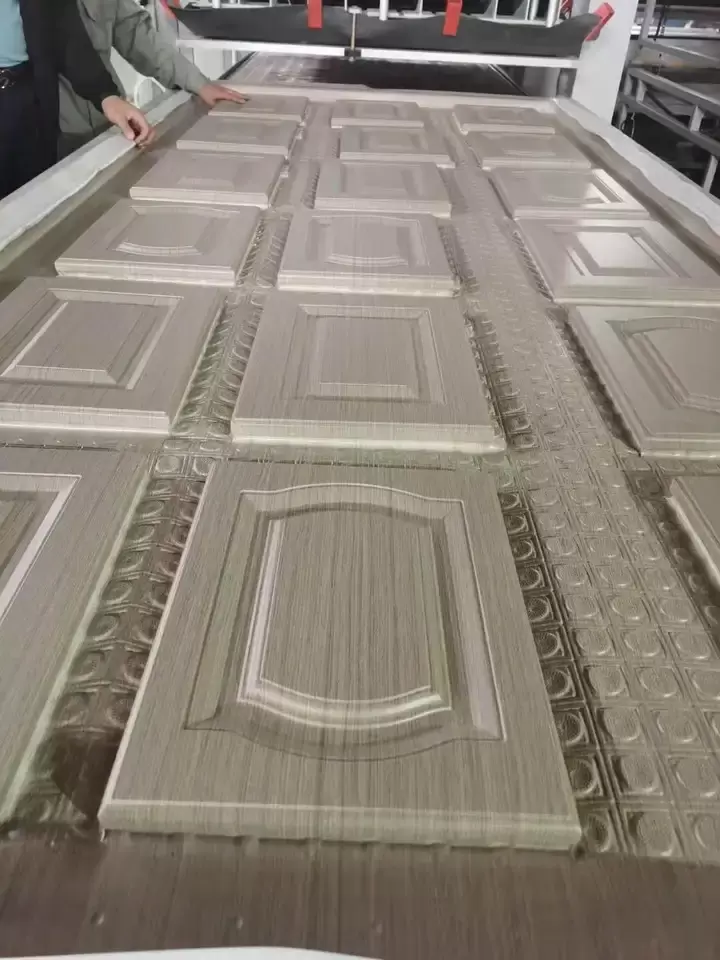

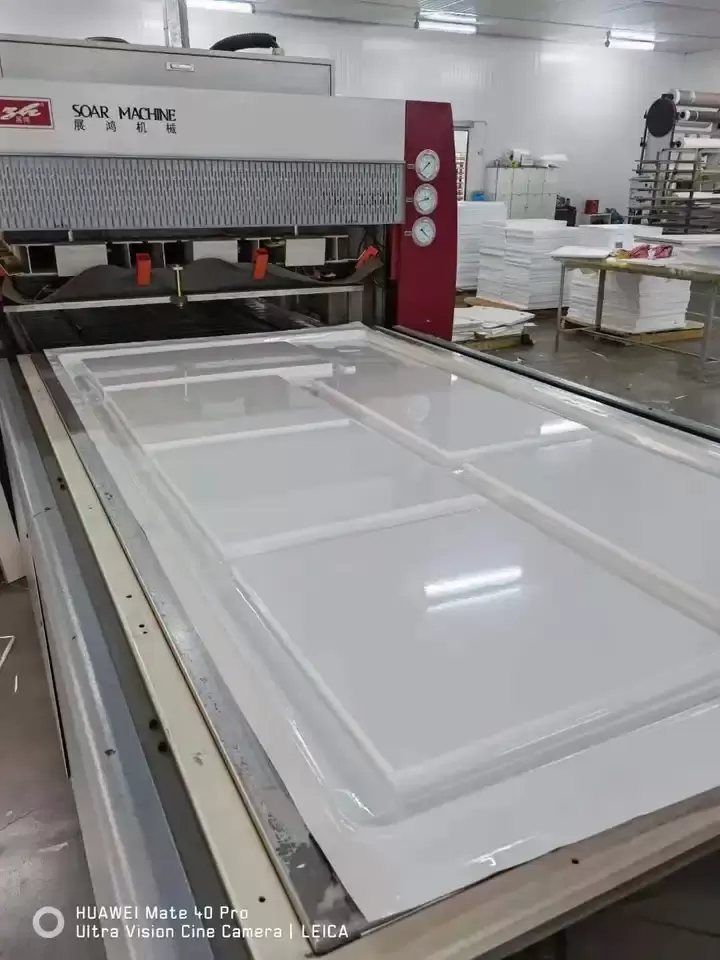

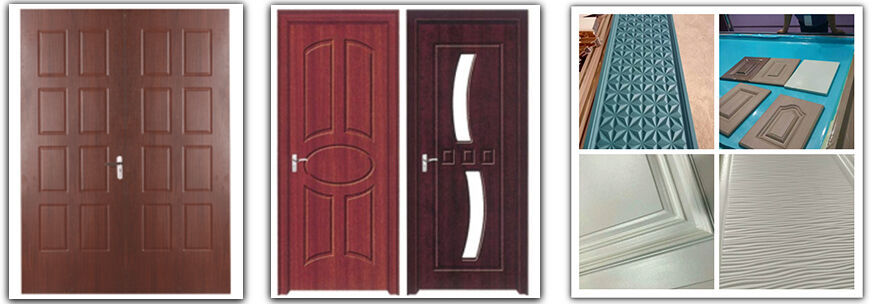

Sample display
