Product Description

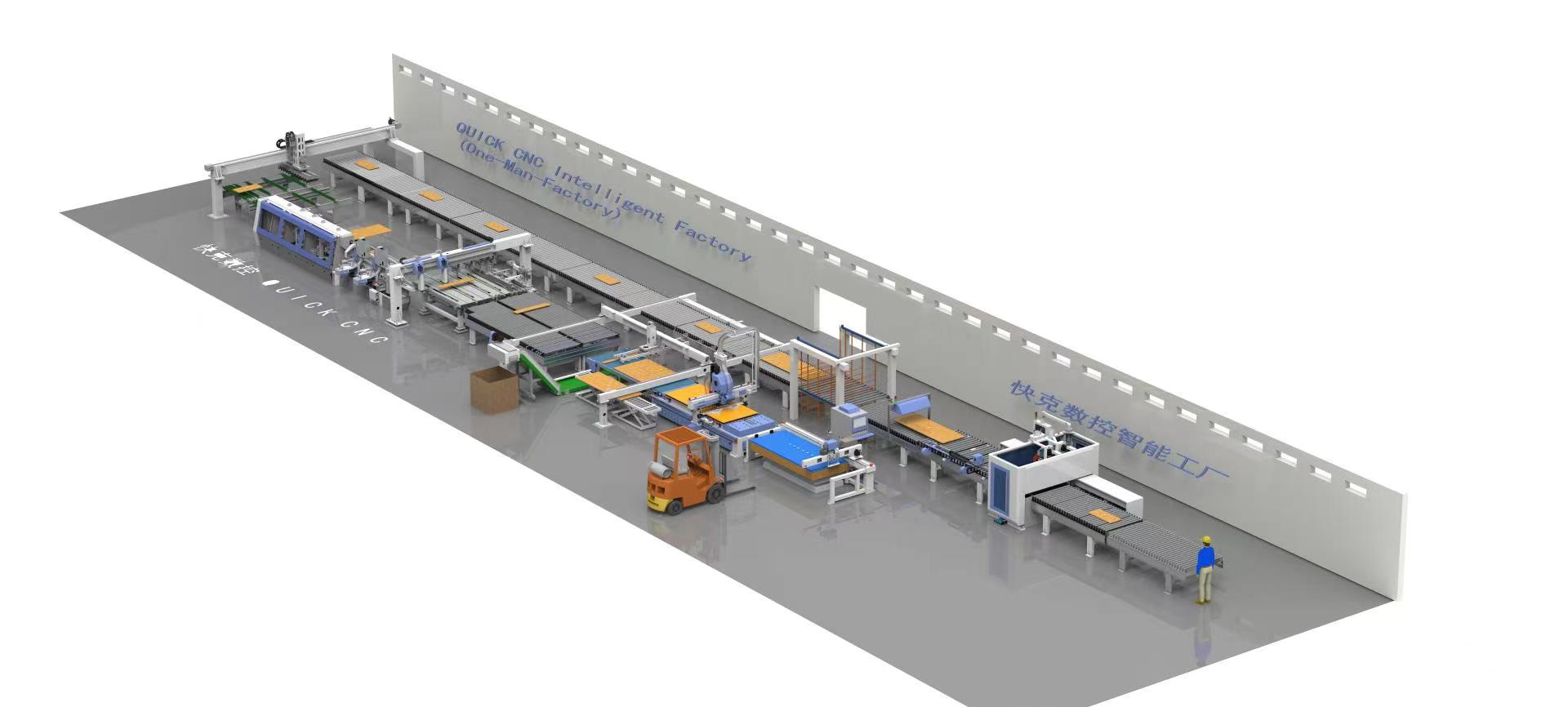

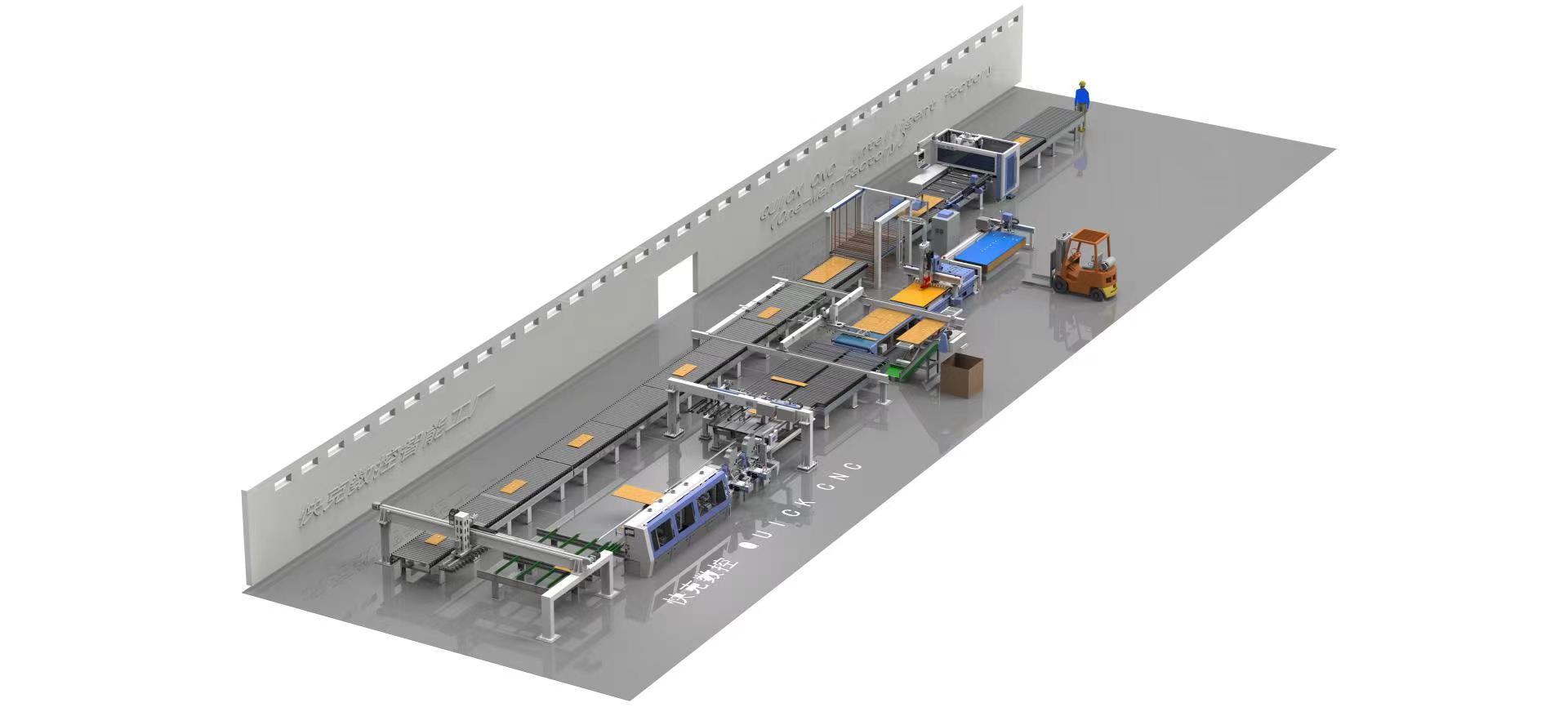

One-person automatic panel furniture production line advantage: greatly saves manpower, and only one person can complete the operation of all panel furniture production lines. It can save at least 75% of manpower, thereby greatly reducing the dependence on manual labor, and reducing errors caused by manual labor.
Video
Parameter
Accessories and Advantage
It is mainly composed of a panel furniture processing center with automatic labeling and loading and unloading functions. After the order disassembly program is imported into the system, the system can automatically optimize the layout to give the most cutting path, from labeling, feeding, cutting, and unloading actions in one go and automatically transfer the edge banding unit.
2. Edge banding unit
It is mainly composed of edge banding machine, picking truss and steering truss. The picking truss puts the cut sheet into the edge-sealing drum. After sealing one side, the steering truss is used to realize the steering of the sheet when sealing the other side. In addition, a separate plate square function is added in the edge banding link, which can completely close the plate to the edge banding machine, which has a great effect on the edge banding of small plates (plates larger than 250MM are online)
3. Punching unit
It is mainly composed of a six-sided drill and a feeding roller, which can realize punching and heterosexual grooving on 6 sides of the plate at one time, which greatly improves the efficiency of the punching process.
Area: 48 meters long and 13 meters wide
Capacity: about 50-60 sheets/8 hours
Application
