CNC Router-Non ATC

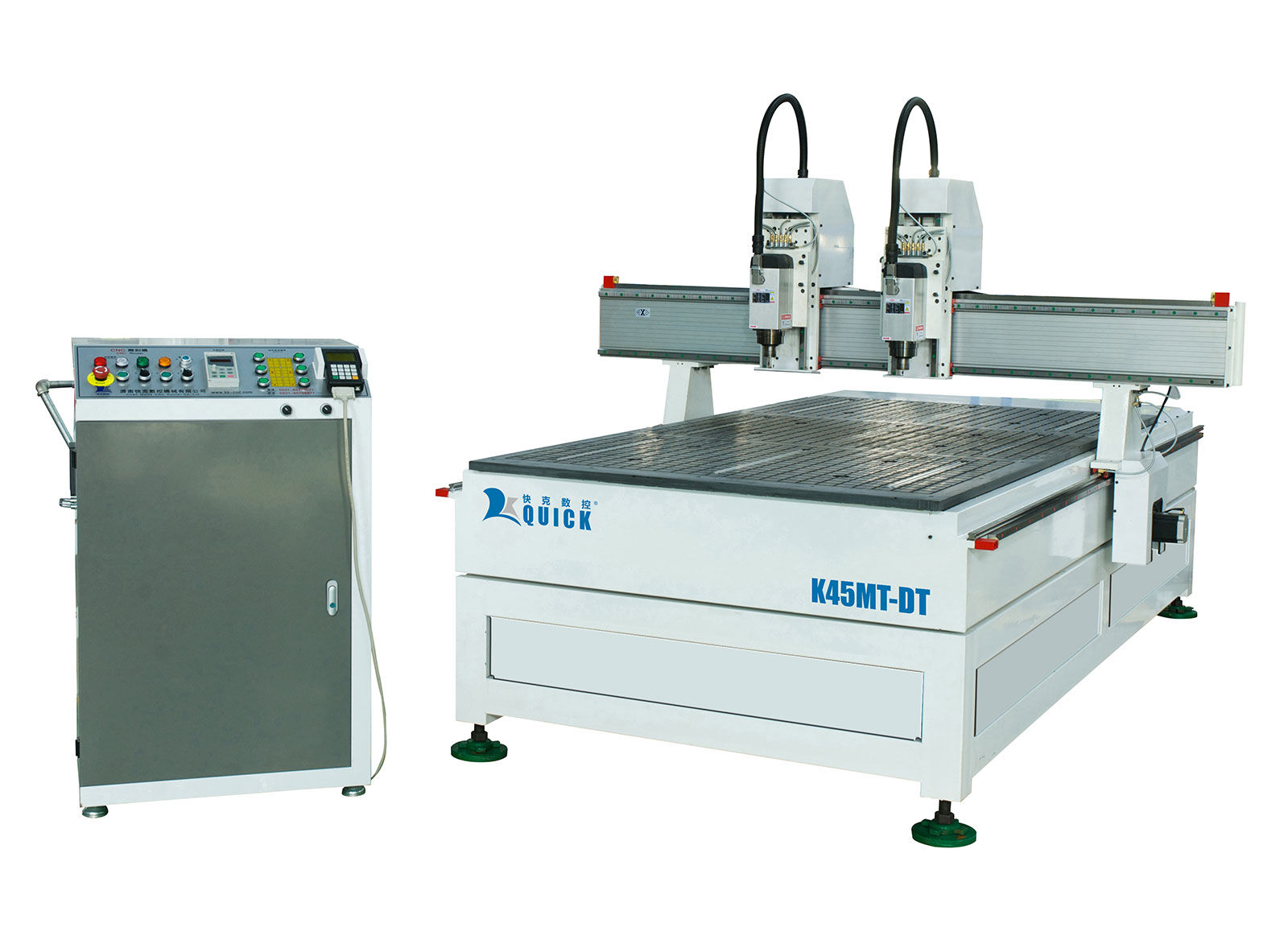

Double spindle cnc machine  K45MT-DT

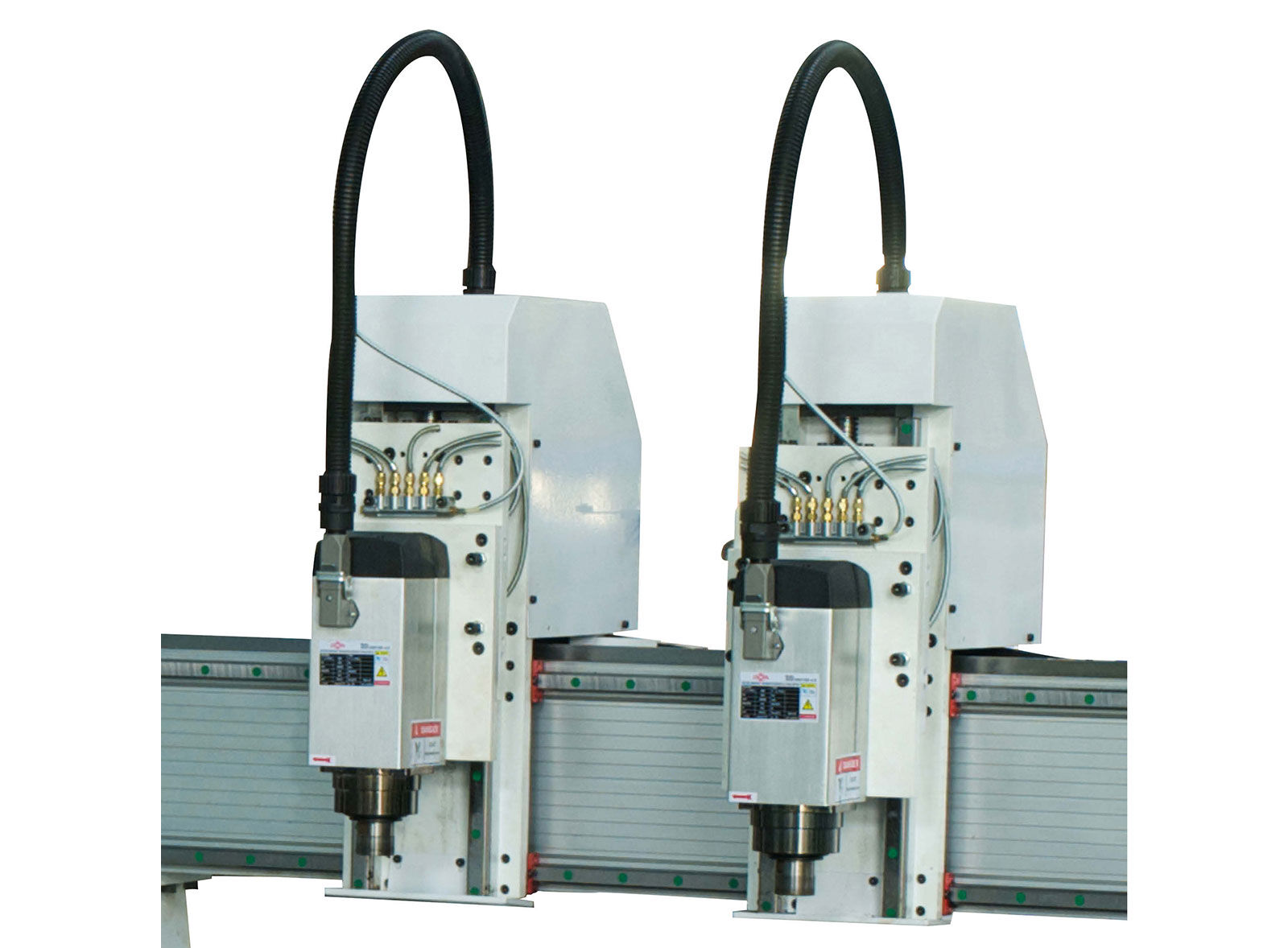

1.Two spindles use two Z axes, which allows the two spindles to be used separately
2.Two spindles can be processed at the same time, double the efficiency
3.After the system is upgraded, can realize asynchronous machining, and two different tools can be installed, which is equivalent to a simple automatic tool change.
4.One machine has multiple functions, saves costs, and satisfies different processing needs

Request A Quote

INQUIRY

Product Description

This is a two heads cnc router machine, muti spindles can process two plates at the same time, and the efficiency is doubled. The number of spindles can be customized according to the customer's process, and the machine size can also be customized.


Trying to figure out which commercial CNC router is right for you? Contact our team to learn more about how our tools can craft anything you have in mind.

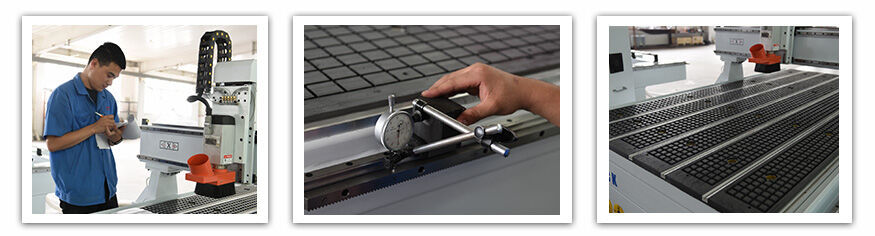

Heavy duty 1325 cnc router (3).jpg



Send Inquiry

Video

Parameter

ModelK45MT-DT
X-Y-Z axis working area1,300 x 2,500 x 200mm
Machine size2,200 x 3,100x1700mm
softwareUcancam
X-Y movementrack and pinion, gear drive
Z movementball screw drive/Taiwan
Guidey Linear ¢20 square/Taiwan
Max. speed35,000mm/min
Max. cutting speed25,000mm/min
Spindle power4.5kw air cooling
Spindle speed18,000rpm
Inverter power5.5kw Inovance
Drive motorsStepper motor
Working voltageAC380V/50-60Hz, 3-phase
Command codeG code
Computer interfaceUSB 2.0
Tablevacuum table with T slot
pump7.5kw air pump
controllerDSP A11

Accessories and Advantage

Hand controlled system, DSP A11

The machine is controlled by the DSP A1X handheld controller, which ensures that the machine can be operated without a computer

The task is loaded into the controller's memory when connected to a PC via a USB drive or directly

Stepper motor

Good mechanical performance and powerful driver, based on NEMA34 motor and driver, it can achieve a moving speed of 35,000 mm per minute, with an accuracy of 0.01 mm, and a belt reducer with a torque transmission coefficient of 1: 3.

spindle 4.5kw air cooling - 2sets

Air-cooled spindle has many unique advantages. Cooling by built-in fan,long service life, No external pump required, Easy to use, easy to maintain, Less affected by the environment, low failure rate, If you are interested in water cooling spindles , We have prepared 4.5kw water cooling spindles for you to choose.

Vacuum table with 7.5KW pump

High-density PVC sheet, good sealing.

With the use of vacuum pump, the adsorption force is more powerful.

We use 7.5KW Chinese pump, Positive pressure is used to provide adsorption, the flow rate is large (480m3/h) but the adsorption effect is general, it is used for the adsorption of small and light plates.

A cost-effective cnc router machine K45MT (3).jpg

Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.
