3 AXIS

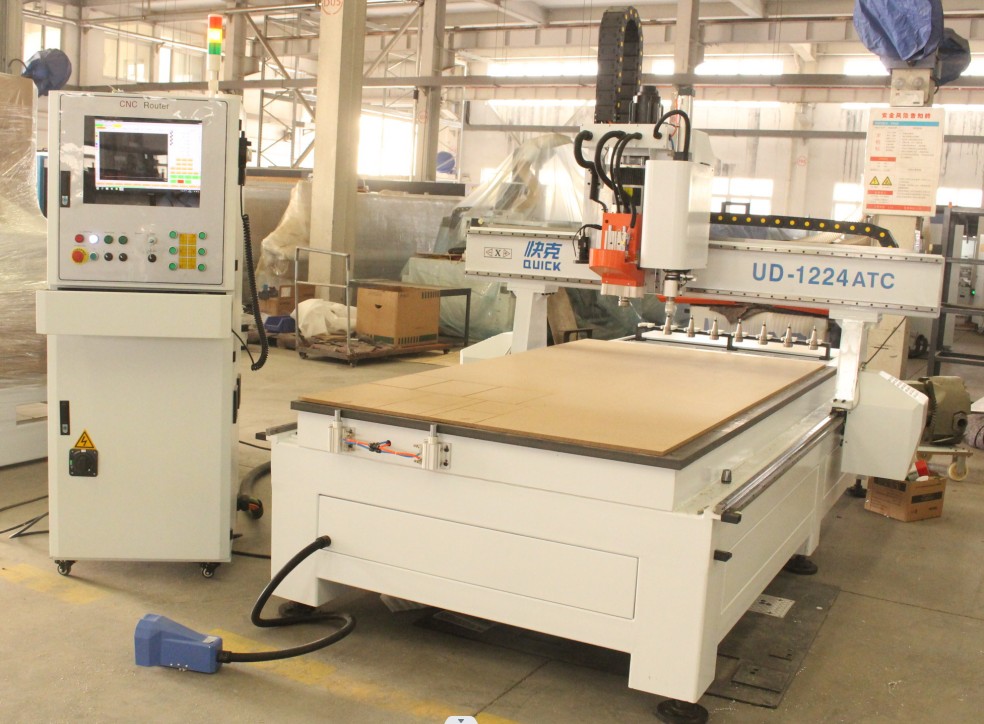

UD1224 Oscillitaing knife cutting machine

UD1224 Oscillitaing knife cutting machine ATC cnc route with camera, is the most economical choice in basics wood router, it has HD patrol camera, eight automatic tool changers, vibrating knife. The camera looks for the pattern position, oscillating knife patrols the edge according to the position. It is well-suited for panel furniture, office furniture, 3d wood cabinets production and so on. The spindle can cut, engrave, drill, and can process wood, plastic, acrylic, PVC, aluminum, copper and other soft metals
Vibrating knife with camera, can cut advertising patterns, cutting paper, cloth, leather, sponge, etc.

Request A Quote

INQUIRY

Product Description

UD1224 Oscillitaing knife cutting machine ATC cnc route with camera, is the most economical choice in basics wood router, it has HD patrol camera, eight automatic tool changers, vibrating knife. The camera looks for the pattern position, oscillating knife patrols the edge according to the position. It is well-suited for panel furniture, office furniture, 3d wood cabinets production and so on. The spindle can cut, engrave, drill, and can process wood, plastic, acrylic, PVC, aluminum, copper and other soft metals

Vibrating knife with camera, can cut advertising patterns, cutting paper, cloth, leather, sponge, etc.



Send Inquiry

Video

Parameter

Item

Parameters

X-Y-Z axis working area

1,300 x 2,500 x 300mm

Machine size

2,200 x 3,800x2400mm

Repositioning resolution

0.02mm

X-Y movement

rack and pinion, gear drive

Z movement

ball screw drive/Taiwan

Guide

Linear ¢20 square/Taiwan

Spindle power

9KW ATC air cooling

Auto tool changer

linear type with tool chank

Spindle speed

24,000rpm

Inverter power

11kw fuling

Drive motors

Inovance servo motor

Table

vacuum table with 7.5kw pump

controller

custom made

pop up pins


vibrating knife


Camera



Accessories and Advantage

9kw HQD ATC air cooling spindle with vibrating Knife

Imported bearings with good quality, long working life Application: Milling,Engraving, Drilling.

High speed, low noise.

Higher precision.


T-slot vacuum working table

The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.


Servo motors

Inovance brand is the best performance servo motor in Chinese market, Motor's  max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high.

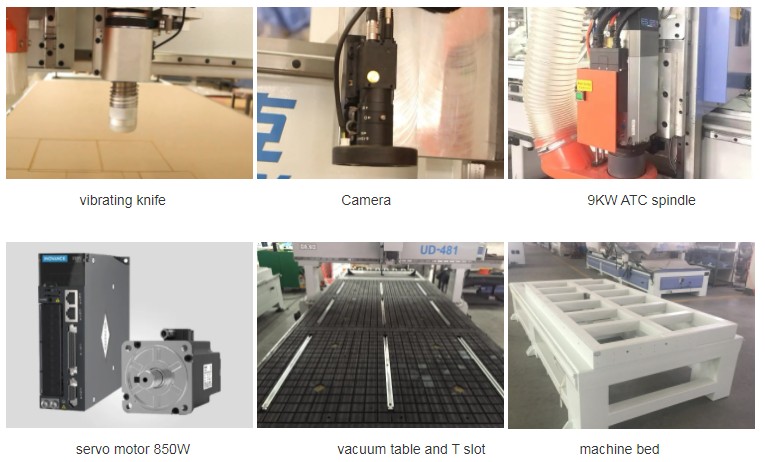

main parst of cnc.png


Send Inquiry

Application

Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.

Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar....

Artwork and Decoration:wood crafts, gift box, jewelry box.

Other:Relief sculpture and 3D engraving and Cylindrical object.

Vibrating knife with camera, can cut advertising patterns, cutting paper, cloth, leather, sponge, etc.
