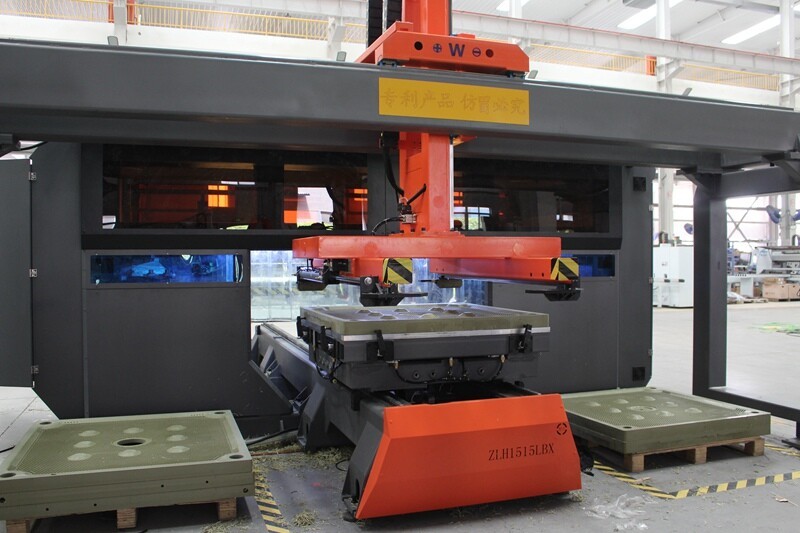

The smart drilling and milling solutions for filter plates developed by  Quick CNC specifically for the filter press equipment industry consist of two parts: a processing system and a loading and unloading system. The processing system uses

KZL-755PL circulation station table and a five-axis CNC processing system, a 22KW high-power electric spindle with a BT40 tool library, and a 16+2 double tool library. It can achieve high efficiency, high precision, and one-time completion of drilling, milling, threading, cutting and other processing procedures at any angle from -90° to +90° on large-size engineering plastics (PP, PE, PVC), aluminum with a thickness of 10mm or less, light alloy, and steel profiles or plates with a thickness of 2mm or less. The processing range includes all processing processes for box plates and welded plates. With the functions of automatic loading, automatic clamping, automatic measurement, automatic plate flipping, automatic loading and unloading, and stacking, the processing process can be unmanned, ensuring the absolute safety of the operator to the maximum extent.

The KZL-755PL machining center adopts an ultra-heavy bed structure, and all moving parts are made of high-precision and long-life components. It can perform heavy-duty machining and achieve good results in both speed and precision. It is an affordable Industry 4.0 equipment.

Quick filter plate intelligent drilling and milling solution is designed to take the processing mode of filter plate profiles to a new level. Smarter, safer and more efficient. It is an ideal choice to meet the increasingly complex and detail-oriented market needs.
